Label printers MACH 4S
for industrial applications

  • reliable and fast printing
  • accurate imprint
  • compact, appealing design
  • easy operation
  • little footprint

The MACH 4S provide all features of an industrial printer with a wide application range.  The print mechanics and the chassis are made of high-quality materials and perfectly match  in terms of shape and function.

The large, colored touchdisplay with self-explanatory symbols offers best operability. Labels and ribbons are easy to insert from the front. The centered material guide eliminates any need of adjustments.

The hightech electronic board integrates all the needed interfaces as standard and is ready for any connection.

Sample applications

PCB labels
PCB labels

When only little space is available – smallest label size 5 x 5 mm
TyType plates
Type plates

Pin sharp fonts, graphics and barcodes up to 600 dpi
Cardboard box and pallet labels
Cardboard box and pallet labels

up to a passage width of 120 mm

ZentriertMaterial guide
centered



Type B with tear-off edge

for printing on all materials that are wound on rolls or reels or fanfold.

1.1 Label printer MACH 4.3S MACH 4S
Printable resolution dpi 203 300 300 600
Print speed up to mm/s 250 250 300 150
Print width    up to mm 104 108.4 105.7 105.7

Type P with peel-off function

for printing on all materials that are wound on rolls or reels or fanfold. In addition, the labels can be dispensed.

1.2 Label printer MACH 4.3S MACH 4S
Printable resolution dpi 203 300 300 600
Print speed up to mm/s 250 250 300 150
Print width up to mm 104 108.4 105.7 105.7
Label height from mm 12


Type C with cutter

for printing on all materials that are wound on rolls or reels or fanfold. From 12 mm in height, the labels and continuous materials can be cut.

1.3 Label printer MACH 4.3S MACH 4S
Printable resolution dpi 203 300 300 600
Print speed up to mm/s 250 250 300 150
Print width up to mm 104 108.4 105.7 105.7
Cutting length from mm 12
Gap height up to mm 2.5
Cuts/min, without material up to 100
Stop print job when final cutter position has not been reached
cablabel S3 demo

Test all functions of cablabel S3 Pro 30 days for free.

cablabel S3 demo download

Label printers MACH 4S: Questions to Guido Denninger

What are the benefits of this toploader with centered material guide.

Read the interview

Details

MACH 4S1  Cover with a large panoramic window
It can be opened wide. The integrated damping mechanism provides smooth closing. Label stock is visible at any time.

2  Roll holder
The label roll is put onto the holder and, at this, is automatically centered. Materials of different widths can be placed within the box.

3 Ribbon holder
The ribbon is pushed onto the spring-mounted holder and is centered by means of a margin stop and the position indication. The insertion in the print mechanics is simple and comfortable.

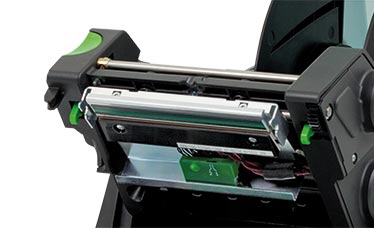

4  Print mechanics
It opens at the push of a button and offers easy access.

5 Print heads
All print heads are freely interchangeable. They are automatically detected and calibrated by the CPU. Major data sucha s running performance, maximum operating temperature and heat energy are directly stored in the print head. The data can be read at the plant.

6 Gap sensor
It is arranged for labels or punch marks and end of material as well as for print marks in a centered position. In case of multi-track labels, you can switch to a sensor  that is shifted 10 mm to the left.

7 Material guide
With the lateral retaining wheel the width is adjusted. At this, the labels are centered.

8  Reflective sensor
Labels and end of material as well as print marks are identified by the slideable sensor.

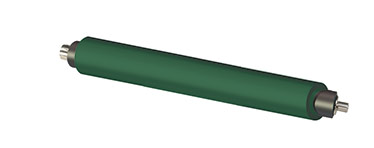

9  Print roller DR4
It can be quickly and easily unlocked in few steps for cleaning or replacement. Coating: synthetic rubber

Print roller DR4-M25
   DR4-M25



Print roller DR4-M50
  DR4-M50



Print roller DR4-M80
  DR4-M80



To achieve accurate imprint with slim materials and ribbons slim print rollers are needed. These prevent from print roller wear, print head contamination and errors during material feed.

10  Peel-off function (with "P" type)
The carrier tape is lead down behind the operation panel. The label separates from the carrier tape at the peel-off edge.

Operation panel

Intuitive and easy operation with self-explanatory symbols to configure the device setups



1  LED signal: Power ON

2  Status bar: Data reception, Record data stream, Ribbon pre-warning, SD memory card / USB memory stick plugged in, Bluetooth, WLAN, Ethernet, USB Slave, Time

3  Printer status: Ready, Pause, Number of printed labels per print job, Label in peel-off position, Awaiting external start signal

4  MACH4 S Peripherie  Buttons for
Cutter: direct cutting
Tear-off or peel-off mode: print the next label

MACH 4S Funktionen

5  Operation

Sprung  Jump to menu

Wiederholung  Reprint last label

Unterbrechung  Interrupt and continue print job

Abbruch  Stop and delete all print jobs

Vorschub  Label feed


Setup optionsvergrößern

Setup options

Printing parametersvergrößern

Printing parameters

Print position Yvergrößern

Print position Y

Print speed selection via scroll functionvergrößern

Print speed selection

Video tutorials explain how to operate the devicevergrößern

Video tutorials

External operation panel

providing the same functionality as on the printer

Landscape or portrait mode display

Users are free to choose whether to operate the printer on the external panel or on the one integrated in the device.

Printer connection: USB 2.0 Hi-speed device

External operation panel MACH 4S

1 LED: Power ON

2 USB slot to connect the Service Key or a memory stick, to load data in the IFFS storage

3 Connecting cable USB, lengths 1,8 m, 3 m, 5 m
Use only specified cables if length succeeds 3 m; for dimensions see assembly instructions



Interfaces on the back of the device



Schnittstellen

1  for a SD memory card

2   2 x USB host to connect a Service Key, USB memory stick, keyboard, barcode scanner, USB Bluetooth adapter, USB WLAN stick

WLAN hotspot or infrastructure mode: In hotspot mode it is possible to directly connect a mobile device with the printer via WLAN.

3  USB 2.0 Hi-speed device to connect a PC

4  Ethernet 10/100 BASE-T

5  RS232C 1,200 to 230,400 baud/8 bit

Typisch typical     Möglich possible     standard standard     Option option

Label printer MACH 4.3S MACH 4S
Material feed centered
Printing method: Thermal transfer Typisch Typisch Typisch Typisch
Printing method: Direct thermal Typisch Typisch Möglich -
Printable resolution dpi 203 300 300 600
Print speed up to mm/s 250 250 300 150
Print width up to mm 104 108.4 105.7 105.7
Start of printing Distance to locating edge mm centered
Material1)
 Paper, cardboard,
plastics PET, PE, PP, PI, PVC, PU, acrylate, Tyvec
Typisch Typisch Typisch Typisch
Shrink tubes ready-for-use Typisch Typisch Typisch Typisch
Textile tapes Typisch Typisch Typisch Typisch
Packing on rolls, reels, fanfold Typisch Typisch Typisch Typisch
Packing Roll diameter up to mm 205
Packing Core diameter mm 38.1 - 76
Packing Winding outside or inside
Labels Width mm 5 - 116
Labels Height excl. label backfeed from mm 5
Labels Heightincl. label backfeed from mm 12
Labels Peel-off, single cut from mm 12
Labels Thickness mm 0.03 - 0.6
Liner material Width at core diameter 38 mm 9 - 120
Liner material Width at core diameter 76 mm 25 - 120
Liner material Thickness mm 0.03 - 0.13
Continuous material Width at core diameter 38 mm 5 - 120
Continuous material Width at core diameter 76 mm 25 - 120
Continuous material Thickness mm 0.05 - 0.5
Continuous material Weight (cardboard) up tp g/m2 180
Shrink tubes Width ready-for-use up to mm 120
Shrink tubes Thickness up to mm 1.1
Ribbon2) Ink side outside or inside
Ribbon Roll diameter up to mm 72
Ribbon Core diameter mm 25.4
Ribbon Variable length up to m 360
Ribbon Width mm 25 - 114
Printer sizes and weight
Width x Height x Depth mm  240 x 317 x 435
Weight kg 6
Label sensor indicating the position
Gap sensor for labels or punch marks and end of material, print marks on transparant materials
Reflective sensor reflex from below for labels and end of material, print marks on non-transparent materials
Distance of sensor from centre to locating edge gap mm centered or shifted by 10 mm to the left
Distance of sensor from centre to locating edge reflex from below mm adjustable from centre by 56 mm to the left or by 10 mm to the right
Material passage up to mm 2
Electronics
Processor 32 bit clock rate 800
Main storage (RAM) 256
Data storage (IFFS) 50
Plug-in for SD memory card (SDHC, SDXC) up to GB 512
Battery for time and date, real-time clock standard
Data memory when power is switched off (e.g. serial numbering) standard
Interfaces
RS232C 1.200 to 230.400 baud/8 bit standard
USB 2.0 Hi-speed device to connect a PC standard
Ethernet 10/100 BASE-T LPD, IPv4, RawIP printing, DHCP, HTTP, FTP, SMTP, SNMP, TIME, NTP, Zeroconf, SOAP web service, VNC
2 x USB Host on the backside for Service Key, USB memory stick, keyboard, barcode scanner, USB Bluetooth adapter, USB WLAN stick, external operation panel
USB WLAN stick 2.4 GHz 802.11b/g/n Option
USB WLAN stick 2.4 GHz 802.11b/g/n + 5 GHz 802.11a/n/ac, Hotspot or Infrastructure Mode Option
USB Bluetooth adapter Option
Periphery connection for cutter or peel-off function standard
Operating data
Power supply 100 - 240 VAC, 50/60 Hz, PFC
Power consumption Standby < 10 W / typical 100 W
Temperature/humidity: Operation +5 - 40 °C / 10 - 85 % not condensing
Temperature/humidity: Stock 0 - 60 °C / 20 - 85 % not condensing
Temperature/humidity: Transport –25 - 60 °C / 20 - 85 % not condensing
Approvals CE, FCC Class A, ICES-3, cULus, CB, CoC Mexico, CCC, EAC, BIS, BSMI, KC-Mark, RCM
Operation panel
Colored LCD touch display Screen diagonal 4,3“
Colored LCD touch display Resolution Width x Height px 480 x 272


For more technical data please read the product brochure (PDF)

  1. The material specifications are standard values. Applications with small labels, very thin, slim, thick and stiff materials as well as labels with a strong adhesive need to be tested.
  2. The ribbon should at least correspond with the width of the carrier material.

cab Video Tutorials MACH 4S

cab MACH 4S: Loading labels Play

MACH 4S: Loading labels

MACH 4S: Loading ribbon Play

MACH 4S: Loading ribbon

MACH 4S: Cleaning printhead Play

MACH 4S: Cleaning print head

MACH 4S: Cleaning gap sensor Play

MACH 4S: Cleaning gap sensor

MACH 4S: Cleaning label sensor Play

MACH 4S: Cleaning label sensor

MACH 4S: Cleaning print roller Play

MACH 4S: Cleaning print roller

MACH 4S: Setting reflect sensor Play

MACH 4S: Setting reflect sensor

MACH 4S: Setting gap sensor Play

MACH 4S: Setting gap sensor

Documentation

You need Adobe Reader to view the PDF-files. Some documents require version 7 or above. Download current version of Adobe Reader

Services and trainings

Well-trained cab service engineers worldwide support in the maintenance and repair of the devices.

Learn more

Here you can download firmware, drivers and software. Documentation on label software, printers programming and administration as well as integration of cab printers into SAP systems:
Label software

cab uses Free and Open Source Software within its products. For more information see www.cab.de/opensource.

Software & Drivers

  • Firmware

    • Title Format Version Last change Language
      cabFirmwareUpdater
      Windows 32 & 64 bit
      ZIP - 12.94 MB 3.8.0.0 18/01/2019
      Firmware X4
      Firmware SQUIX | MACH 4S | EOS2 | EOS5
      ZIP - 41.09 MB 5.26 14/08/2019
      Release Notes Firmware X4
      cab TXT - 44 KB 5.00 - 5.26 14/08/2019
  • Drivers

    • Title Format Version Last change Language
      cab Linux x86 - 32 Bit Driver
      CUPS Linux Intel 32bit Driver (min. CUPS 1.2)
      GZ - 1.87 MB 1.31 30/07/2019
      cab Linux x86 - 64 Bit Driver
      CUPS Linux Intel/AMD 64bit Driver (min. CUPS 1.2)
      GZ - 1.87 MB 1.31 30/07/2019
      cab MAC OS X Driver
      Apple® Mac OS X 10.6 - 10.14
      ZIP - 4.04 MB 1.31 30/07/2019
      cab Windows Driver
      32/64 Bit (Vista - Windows 7 - Windows 8 - Windows 8.1 - Windows 10 - Windows Server 2008, 2008 R2, 2012, 2012 R2, 2016, 2019) CERTIFIED
      ZIP - 9.37 MB 5.3.03 05/08/2019
  • Software

    • Title Format Version Last change Language
      cab Download Converter (download.exe)
      Converts image, font and database files into the JScript download data format.
      Install MS Visual C++ 2010 Redistributable if not available on your system.
      ZIP - 9 KB 2.3 10/07/2019 English
      cablabel S3 Demo (Free)
      Windows Vista, 7, 8, 10, Server 2008, 2008 R2, 2012, 2012 R2
      ZIP - 51.42 MB 1.2.0.2 29/11/2018
      cablabel S3 Lite (Free)
      Windows Vista, 7, 8, 10, Server 2008, 2008 R2, 2012, 2012 R2
      ZIP - 58.13 MB 1.2.0.2 06/12/2018
      cablabel S3 Print
      Windows Vista, 7, 8, 10, Server 2008, 2008 R2, 2012, 2012 R2
      ZIP - 48.93 MB 1.2.0.2 29/11/2018
      cablabel S3 Pro
      Windows Vista, 7, 8, 10, Server 2008, 2008 R2, 2012, 2012 R2
      ZIP - 58.21 MB 1.2.0.2 06/12/2018
      Database Connector
      Windows 32 & 64 bit
      ZIP - 10.93 MB 4.3.0.1 04/07/2017 English/Deutsch/Français
      LogService
      for Database Connector
      ZIP - 4.15 MB 1.7.1.0 11/01/2016 English/Deutsch/Français

You need Adobe Reader to view the PDF-files. Some documents require version 7 or above. Download current version of Adobe Reader

cab Produkttechnik GmbH & Co. KG

Wilhelm-Schickard-Str. 14
76131 Karlsruhe
Germany

Call us
Email us
Request support

cab on:

Tweets by @cab_news

1 day ago

Recommendations on the label quality in applications: https://www.cab.de/media/pushfile.cfm?file=3555 …

Show tweet on Twitter


6 days ago

Product launch at the , part 2: the cab identifying laboratory samples. https://www.cab.de/en/news/press/fachpack-2019/ …

Show tweet on Twitter


Follow us on Twitter

cab Newsletter

Our cab-newsletter will inform you regulary about the topic marking by email. Free of charge and not binding. To address you personally and individually, we require some more infomation of you.

subscribe now!
unsubscribe
Live Chat
