Marking lasers XENO 4
New fiber lasers with 20, 30 or 50 Watt output power

High beam quality and high pulse peak powers

The performance and quality of markings mainly depend from the output power and the laser beam focus.

cab XENO 4 marking lasers are diode-pumped and air-cooled. They have high beam quality and high pulse peak powers. Laser sources are provided with 20, 30 and 50 Watt.

Different plano-spherical lenses enable marking in fields from 69 x 69 mm to 290 x 290 mm.

Marking is possible on plastics, metals and painted surfaces.

XENO 4 marking lasers consist of two units: The control unit has the beam source integrated, whereas the scan head is connected with the beam source via a fiber. It can be assembled in any orientation.

The integrated focus finder simplifies workpiece positioning.

cab marking lasers XENO 4 represents

a compact scan head,
high operation speeds,
integrated focus finding,
shifting the marking plane quickly,
shifting the focus throughout height differences up to 140 mm,
Industry 4.0,
TCP/IP control and monitoring

The control unit and the beam source are incorporated in a 19" rack.

vergrößern

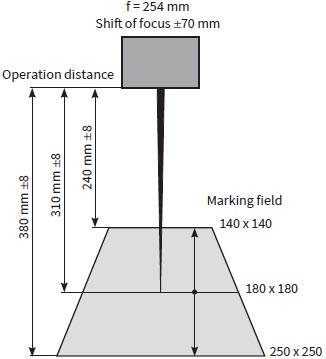

Shifting the focus with XENO 4S

By shifting the focus, XENO 4S can within fractions of a second effortlessly compensate height differences on a component.

By mechanical unit adjustment, even complex markings are possible on different levels of a component without loss of cycle time.

A control unit calculates the respective layout scaling. Depending from the plano-spherical lens in use, shifting is possible up to ±70 mm.

Want to learn more?

Marking lasers XENO 4

Ask for an offer free of charge and without obligation:

Request a quote

Learn more:

Read the product brochure (PDF)

Marking laser	XENO 4 / 20	XENO 4 / 30	XENO 4 / 50	XENO 4S / 20	XENO 4S / 30	XENO 4S / 50
	1.1 - 1.12			1.13 - 1.14	1.15 - 1.16	1.17 - 1.18
Beam source	Ytterbium fiber laser, pulsed, air-cooled
cw output power up to W	20	30	50	20	30	50
Pulse energy mJ	1
Wave length nm	1,064
Beam quality M²	< 1.8
Pulse width ns	< 120
Pulse repetition frequency kHz	20 - 60	30 - 60	50 - 100	20 - 60	30 - 60	50 - 100
Connection cable m	2.5

Plano-spherical lens on	XENO 4				XENO 4S
Lens Type	100.2	160.2	254.2	420.2	160.2	254.2
Operation distance mm	141 ± 4	210 ± 8	310 ± 8	251 ± 20	210 ± 8	310 ± 8
Marking field mm	69 x 69	112 x 112	180 x 180	290 x 290	112 x 112	180 x 180
Spot diameter μm	~25	~35	~50	~85	~35	~50
= Resolution dpi	1,000	725	500	300	725	500
Scan head
Assembly	horizontal / vertical
Marking speed mm/s	~5,000
Shift of focus¹⁾ mm	-		-		±35	±70
Speed of shift of focus ms/mm	-		-		0.5	0.3

Pilot laser
Wave length nm	650
cw output power	< 1
Electronics
Processor 32 bit clock rate MHz	600
Main memory (RAM) MB	256
Data memory (Flash) MB	512
Extension (Flash)	USB memory stick
Dimensions and weights	Rack 4 HE 19“
Control unit W x H x D mm	420 x 178 x 420
Control unit Weight kg	16
Scan head W x H x D mm	99 x 135 x 205			99 x 155 x 260
Scan head Weight kg	3			4
Operation panel
Key switch	Beam source ON/OFF
Buttons Pilot laser / focus finder	ON/OFF
Buttons Shutter open	open / close
Display Emission	Beam source in operation
Display Laser error	Beam source error
Display Ready	Beam source ready
Display Power	Power supply ON
Display Pilot laser / focus finder	ON
Display Shutter open	Safety lock open
Connections Service	USB Mini
Connections Data memory	USB
Operating data
Power supply	100-240 VAC, 50/60 Hz
Power switch	ON/OFF
Power consumption Standby W	65
Power consumption up to W	200	200	350	200	200	350
Temperature / humidity Operation	5 - 40 °C / 10 - 85 %, not condensing
Temperature / humidity Stock	0 - 60 °C / 20 - 80 %, not condensing
Temperature / humidity Transport	–25 - 60 °C / 20 - 80 %, not condensing
Approvals	CE, FCC Class A
Laser protection class EN60825-1
Laser protection class Beam source	Class 4
Laser protection class Pilot laser	Class 2

Dimensional drawings and more technical data see product catalog marking lasers.

Interfaces

Interfaces providing process control and monitoring

1 Ethernet 10/100 Base to connect a PC. As delivered, the device has been configured with an IP address or in DHCP mode.

2 Ethernet 10/100 Base to connect peripheral devices. Bidirectional data transfer from and to end devices

3 + 4 2 x RS232 C to connect peripheral devices. Bidirectional data transfer from and to end devices

5 Digital I/O control and monitoring. Provided are 8 inputs and outputs, freely programmable. Circuit protected according to IEC 61131-2

6 Remote laser switch-on and control

7 Interlock / E-stop to integrate to external safety circuits and connect an external E-stop

Want to learn more?

Marking lasers XENO 4

Ask for an offer free of charge and without obligation:

Request a quote

Learn more:

Read the product brochure (PDF)

expand all collapse all

Marking laser accessories

Plano-spherical lenses F-Theta XENO series

The laser marking system XENO 1 is available with two different lenses.
The smaller the marking field, the higher the resolution.

Plano-spherical lens	100.2	160.2	254.2	420.2
To be used with	XENO 4	XENO 1 XENO 3 XENO 4/4S	XENO 1 XENO 4/4S	XENO 4
Operating distance XENO 1 mm	141 ± 4	210 ± 8	310 ± 8	541 ± 20
Marking field mm	69 x 69	112 x 112	180 x 180	290 x 290
Spot diameter μm	~25	~35	~50	~85
≙ Resolution dpi	1.000	725	500	300
Shift of focus with XENO 4S mm	-	± 35	± 70	-
Shift of focus speed mm/s	-	0.5	0.3	-

1 Operating distance

Protective glass for F-Theta

It is mounted on the plano-spherical lens F-Theta and can be replaced in case of a damage.

Protective glass for F-Theta 100 160 254 420

Outside diameter mm 80 75 75 114

Protective glass for F-Theta	100	160	254	420
Outside diameter mm	80	75	75	114

Linear axes Z400, Z200

They allows precisely positioning the scan head.

Linear axis	Z400	Z200
Traversing distance mm	440	200
Position accuracy mm	0.05	0.05
Repetetive accuracy mm	±0.05	±0.05
Traversing speed max. mm/s	60	20
Dimensions W x H x D mm	110 x 840 x 220	110 x 510 x 220
Load capacity kg	10	7
Weight kg	16	9

Axis controller 2S

It allows positioning of the linear and rotary axes via the RS232 or digital I/O interface.

Axis controller	2S
Dimensions W x H x D mm	150 x 110 x 25
Interfaces for Z and rotary axis Interfaces for Digital I/O Interfaces for RS232	for manual operation for automatic operation
Power supply	24 VDC
Connecting cable for axis controller	2S
Length mm	3,000

Extraction and filter device AF5

Laser marking processes produce poisonous dusts and gases. The extraction and filter device protects the health of the operators and prevents both the laser area and lens from contamination. At this, it also ensures that the laser power maintains. The air from the working area is extracted by a highly performant turbine via a flexible hose.

The pollutants resp. dusts are separated by the pre-filter and the filter for suspended particles. Gaseous pollutants are absorbed by the active carbon filter. Cleaned air is then returned to the environment.

The extraction and filter device has a modular design, filters are easy to exchange.

Extraction and filter device		AF5	AF5 with pre-filter module

Suction power max. m³/h		230
Vacuum max. Pa		11,000
Filter equipment	Filter class
Pre-filter mat	F5		-
Pre-filter	F7	-
Filter for suspended particles	H13
Active carbon / BAC filter
Dimensions and weights
Device	Width mm	350	350
	Height mm	650	880
	Depth mm	350	350
	Weight ~kg	40	55
Suction nozzle NW mm		50	50
Operating data
Power supply		100-240 VAC, 50/60 Hz
Power consumption	Standby W	<40
	typical W	400
	max. W	1.100
Temperature / humidity	Operation	+5-40 °C / 10-85 % not condensing
	Storage	-25-55 °C / 20-85 % not condensing
	Transport	–25-55 °C / 20-85 % not condensing
Approvals		CE, FCC, cETLus, W3, CAN ICES-3

Operation panel
Indicators	LCD color display
	Filter saturation Filter status Suction power	Error Turbine / Temperature Machine error
Button 1 Button 2	Run / Standby Suction power
Interfaces
	Serial RS232C
Monitoring	Run / Standby Suction power Temperature error Turbine error Filter saturated Filter pre-warning (75%)	Vacuum filter 1/2 Rotation speed Temperature Operating hours Run Operating hours Standby
Control unit	Run / Standby Suction power+/- Reset

Consumables

8.10 Pre-filter mat

8.11 Pre-filter
It absorbs approx. 10 times more pollutant particles and dusts than the mat.

8.12 Filter for suspended particles

8.13 Active carbon / BAC filter

Accessories

8.3 Pre-filter module
for retrofitting

8.5 Suction hose 2.5 m
included in the scope of delivery

8.6 Crevice nozzle

for cleaning the work area;

included in the scope of delivery
