HERMES applicators for ROXI
Easy to configure
The applicator can be fully set on the ROXI control panel, configurations be stored and called up. Automatic calibration features speed up the setup.
Process control
Detailed statistical values are provided, so are sophisticated error messages. Constant control enables response right away in events of errors.
Updates
Applicator firmware can be updated via ROXI interfaces.
-

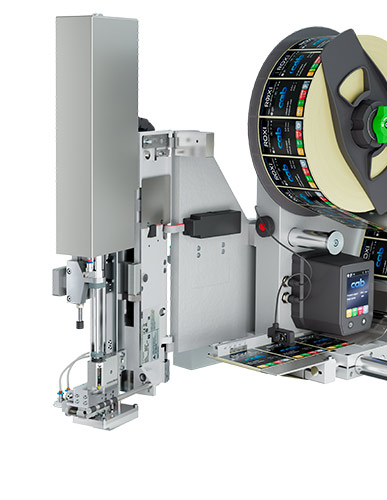

Details applicators
-
1 Long product life
by a precise and low-wear linear guide2 Products of variable heights
Labels can be applied on different heights using a stroke cylinder. Its standard lengths are 200, 300, 400 and 600 mm. Further lengths can be provided upon request3 Protective chassis

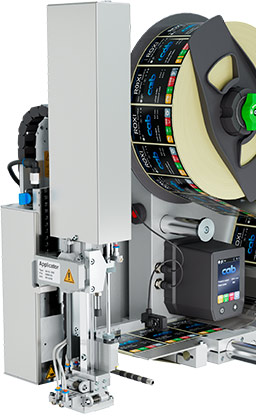

to protect the cylinder and the guide4 Highly reliable processes
Support air and intake air can be defined,so can stroke speed. Sensor control5 Label sizes
Small or large labels, 4 to 250 mm high and 4 to 174 mm wide, can be processed using an applicator.6 Pivoting applicator
The print mechanics can be accessed quickly and easily in cases of maintenance or if materials have to be replaced.Options
Pressure-reducing valve
It reduces the pressure exerted by the stroke cylinder to a product.Pressure-reduced applicator
It has been designed for manual workstations missing a protective cover. The cylinder diameter is reduced to 12 mm. To prevent from injuries, a safety valve limits compressed air to a maximum of 4.8 bar.Accessory
Blow tubes
to provide support air. To assist label transfer, the label is blown from below to the pad.
Provided for 2", 4" or 6" label applicationsCombinations of applicators and transfer modules (Catalog page 13)
-
HQ 4114, HQ 4116 stroke applicators
Labels very small or midsized can be applied in real time from all sides.
HQ 4214 stroke turn applicator
Labels very small or midsized can be applied in real time from all sides whenever the unit is difficult to install.
HQ 4414 stroke applicator
Labels very small or midsized can be applied in real time from all sides. Positions to which labels shall be applied can be adjusted in directions x and y.
HQ 4514 swing stroke applicator
Labels can be applied in real time from all sides on inner surfaces of profiles and pipes. Stroke cylinder adjustment enables labels be transferred exactly to their dedicated spots.
HQ 4712 flag applicator
Labels can be applied in real time from all sides precisely on round materials such as cables, hoses or pipes.
HQ 4014, HQ 4016 stroke applicators
Labels can be applied in real time from all sides to packages. The type of pad defines whether a package has to be at rest or can be in motion at the time a label is applied. Labels can be applied in real time from all sides to packages.
HQ 4024 stroke applicators
Labels are applied in real time onto packagings of different heights. As much as 90 percent savings of compressed air. Labels applied onto variable heights using one tamp pad.
HQ 4614 stroke blow applicator
Labels can be applied in real time from all sides on packages of various heights in motion.
HQ 6114 air jet box
Labels can be applied to packages in motion or at rest. Each label is sucked by a fan and blown off by a powerful blast of air coming through aligned nozzles.
