Labeling heads ROXI, IXOR 2⁺
Type overview, common features, peripherals

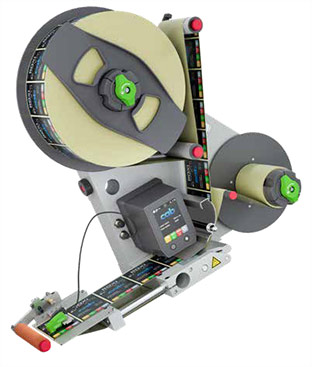

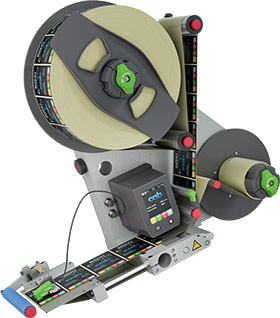

ROXI 30

with label webs running as fast as 30 m/min

Roll diameter max. 310 mm
Roll width max. 180 mm

More information www.cab.de/en/roxi

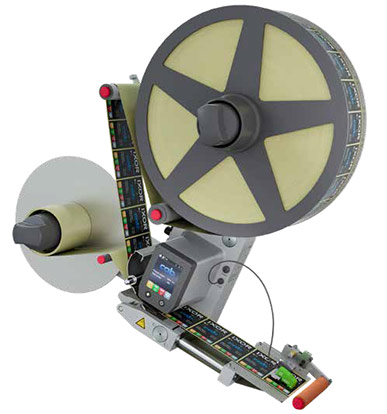

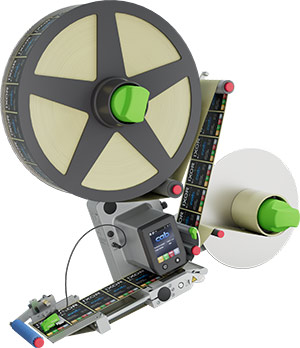

IXOR 2⁺ 50

with label webs running as fast as 50 m/min
using a mechanical unwinder and a mechanical rewinder

Roll diameter max. 410 mm / 510 mm upon request
Roll width 15 mm - 248 mm

More information www.cab.de/en/ixor2plus

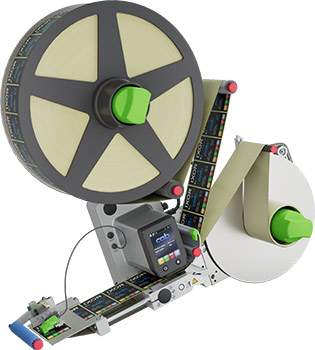

IXOR 2⁺ 75

with label webs running as fast as 75 m/min
using a mechanical unwinder and a motoric rewinder
Roll diameter max. 410 mm / 510 mm upon request
Roll width 15 mm - 248 mm

IXOR 2⁺ 120

with label webs running as fast as 120 m/min
using a motoric unwinder and a motoric rewinder

Roll diameter max. 410 mm / 510 mm upon request
Roll width 15 mm - 248 mm / max. 310 mm upon request

More information www.cab.de/en/ixor2plus

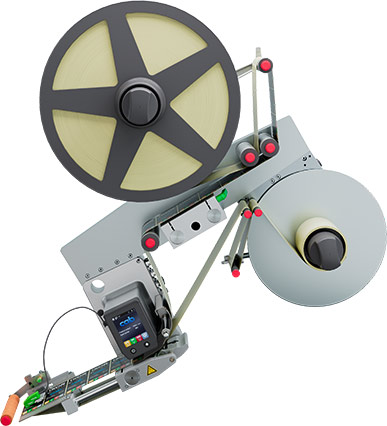

IXOR⁺

with label webs running as fast as 50 / 75 / 120 m/min

See the base unit with unwinders and rewinders, the mounting strip and accessories specified in a separate catalog IXOR+.

  For new projects, use IXOR 2⁺

• Precise insert labeling
• Solid construction, perfect in every way
• Compact and slim design
• Any kind of assembly

• High quality and reliability
• Short setup times
• Future-proof investment
• Safety guaranteed
• Useful accessories

Compact and slim design
Easy to install into production lines or labeling plants

Any kind of assembly
Vertical, horizontal, inclined ‒ labels provided to the left or right

High quality and reliability
Tried and tested functional modules Made in Germany

Durable and easy to maintain
Designed for continuous industrial use; free firmware updates via Ethernet, USB interface or FTP software

Short setup times
on material changeover

Adjustable web brake
It helps with sensitive stamped parts and materials that are difficult to dispense. In cases of material changeover, simply open and close it using a lever.

Dynamic speed control
Label webs are fed automatically by a masterencoder (rotary → linear upon request) synchronous to the speed of an item.

Safety guaranteed
Certified by independently authorized testing labs

Useful accessories
Columns, stands, connecting cables and many others help with installing a labeling head ready for use.

ROXI HQ

ROXI labeling head with a HERMES HQ applicator

• Labeling of items at rest, as well as insert labeling
• Precise label positioning
• High repetitive accuracy
• Items of various heights
• Labels and molded parts:
  - Protective films
  - GORE-TEX membranes
  - Gaskets
  - Heat conduction pads
  - Shields

More information www.cab.de/en/roxihq

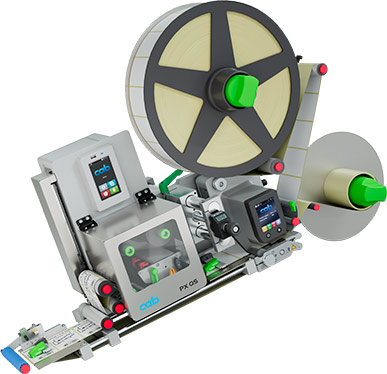

PX QS

Print modules providing integral loop control for ROXI / IXOR 2⁺ labeling heads

• Low material loss thanks to programmable loop length
• Labels as long as 300 mm
• An inductive label sensor is an option with transparent labels.
• Compact design; mounting rods are required 450 mm long
• Low installation depth of 114 mm by lateral plug connectors

Installation depth 114 mm behind the material locating edge. As with the ROXI and IXOR models, power supply and interfaces locate lateral on the printer chassis, so are the interfaces.

The print module and the labeling head are jointly assembled on a carrier or a plate.

Labels without additional printing are fed directly to the dispenser tongue below the print module.

More information www.cab.de/us/pxqs
