Vacuum belt applicators 5414, 5416 for linerless

Labels can be applied from the top or from the side onto cylindric packages in motion

Corner-wrap applications are as well possible. The applicator locates in front of the peel-off plate. Printed labels are guided along a vacuum belt to a target point. Applications onto packagings are triggered by an external signal.

Application example

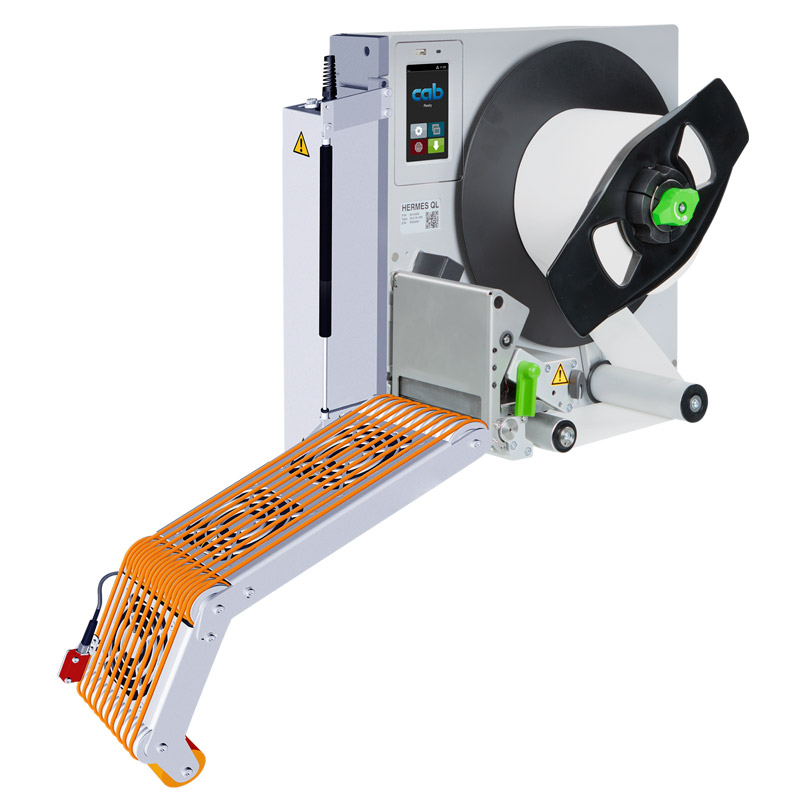

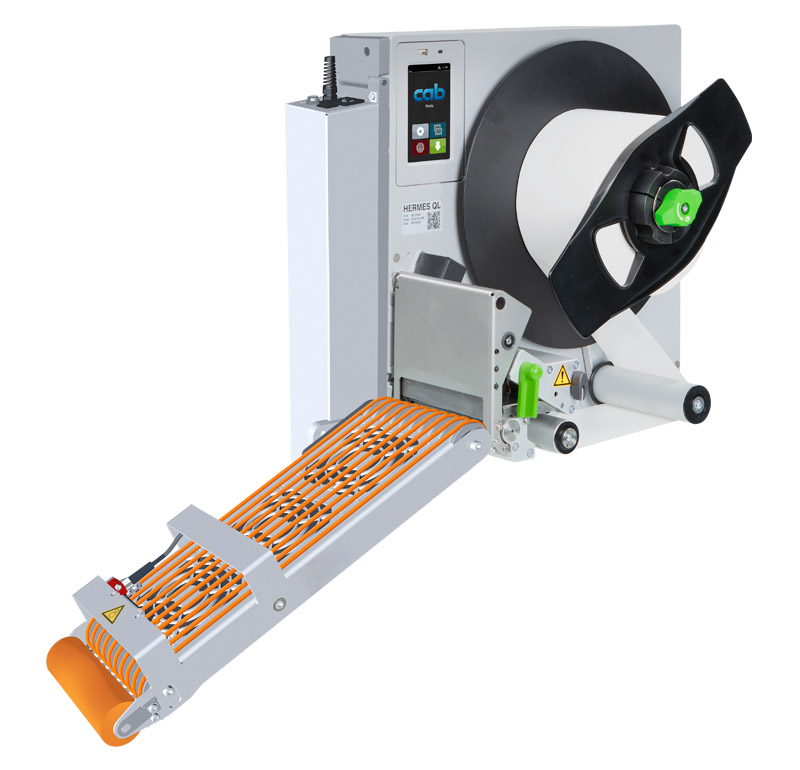

Vacuum belt applicators HQ 5414, HQ 5416

vergrößern

Vacuum belt applicator	5414-3	5414-4	5416-3	5416-4
Label application	onto cylindric surfaces, corner-wrap
Directions to which dispense labels	left and right
Label width HERMES QL4.3 mm	20 - 114	20 - 114	-	-
Label width HERMES QL6.3 mm	-	-	46 - 174	46 - 174
Label height mm	80 - 356	80 - 456	80 - 356	80 - 456
State of a package at the moment a label is applied in motion
Direction from which labels are applied	from the top, from the side
Package heightuniform varialbe
Package heightuniform varialbe
Package speed m/s max.	0.3
Gap between packagesm at least	0.5
Steadiness at application level	F¹⁾ = 30 N
Corner-wrap label applications mm max.	X = 160
Vacuum belt speed²⁾ mm/s	100 - 300
Weight of applicator packaging excluded kg	7	7	8.5	8.5
Consumption of powerW max.	90
Cycle rate³⁾ labels/min up to	15
Distance of a label to the belt, when applying from the side mm	Y = 20

F = force required to make the vacuum belt pivot
The speed of a package must be at least as high as the speed of the vacuum belt.
calculated using labels 100 mm high and a print speed of 250 mm/s
