LSG+65 laser safety housing

LSG+65 LogoEasy and fast marking of single workpieces and small series

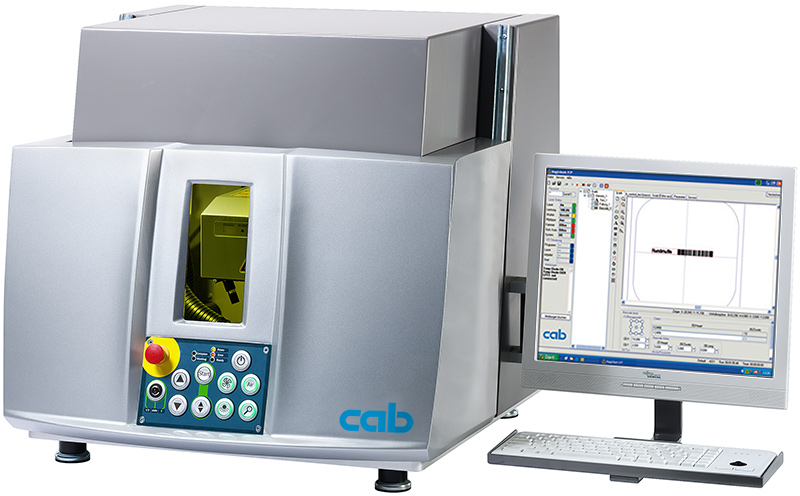

The laser safety housing LSG+65 offers a professional solution that allows an easy and fast marking of single workpieces and small series. The desktop version provides enough working space even for larger workpieces.

The manual operation door is balanced. Keyboard and monitor may, as an option, be installed in an ergonomic way on a pivot arm.

Accessories

  • 6.2 Pivot arm for monitor with keyboard tray
  • 6.3 Rotary axis
  •  6.6 Suction hose
  • 6.7 Mobile cart

Overview: Which modules can be integrated into the different laser marking systems?

Laser product marking

The right method depending on your requirement.

We show you laser applications

Marking lasers FL+

cab marking lasers FL+ offer highest beam quality and pulse peak power.

Precise, fast, economic

  6.1
  Laser safety housing LSG+65
Working area HxWxD mm 200x530x380
Base plate T-slot WxD mm 495x375
Pitch mm 25
Z-Axis stroke mm 240
Positioning accuracy 0.1
Interior light LED
Operating door Manual
For plano-spherical lens type 100.1 160.1 254.1
Marking field mm 69x69 112x112 180x180
Working distance mm 141 202 302
Workpiece height max. mm 30-270 210 110
Workpiece weight max. kg 20
Dimensions and weight
HxWxD mm 615x675x860
Laser protection window HxW mm 200x100
Mounting feet Ø mm 50
Connector extraction Ø mm 50
Weight kg 90
Operating data
Operating voltage/frequency 100-240 VAC ~ 50/60 Hz
Power ON/OFF
Temperature / air humidity operation 5-40 °C/10-85 % not condensing
Temperature / air humidity stock 0-60 °C/20-80 % not condensing
Temperature / air humidity transport –25-60 °C/20-80 % not condensing
Laser safety class EN60825-1 Class 1
Approval CE
Control panel
LED indicators Power
Emission
Marking
Ready
Error
Push buttons illuminated Control ON/OFF
Focus finder ON/OFF
Extraction ON/OFF
Air pressure ON/OFF
Interior light ON/OFF
Start
Z-Axis UP/DOWN
Rotary axis LEFT/RIGHT
Switch E-Stop
Key switch Automatic/manual
Monitoring
Safety circuits Closed
Collective error Marking laser
Extraction
Interfaces
Interlock/E-Stop FL+
Remote FL+
Digitale I/O FL+
Step motor z-axis, turning-axis
Extraction and filter device AF1.1
