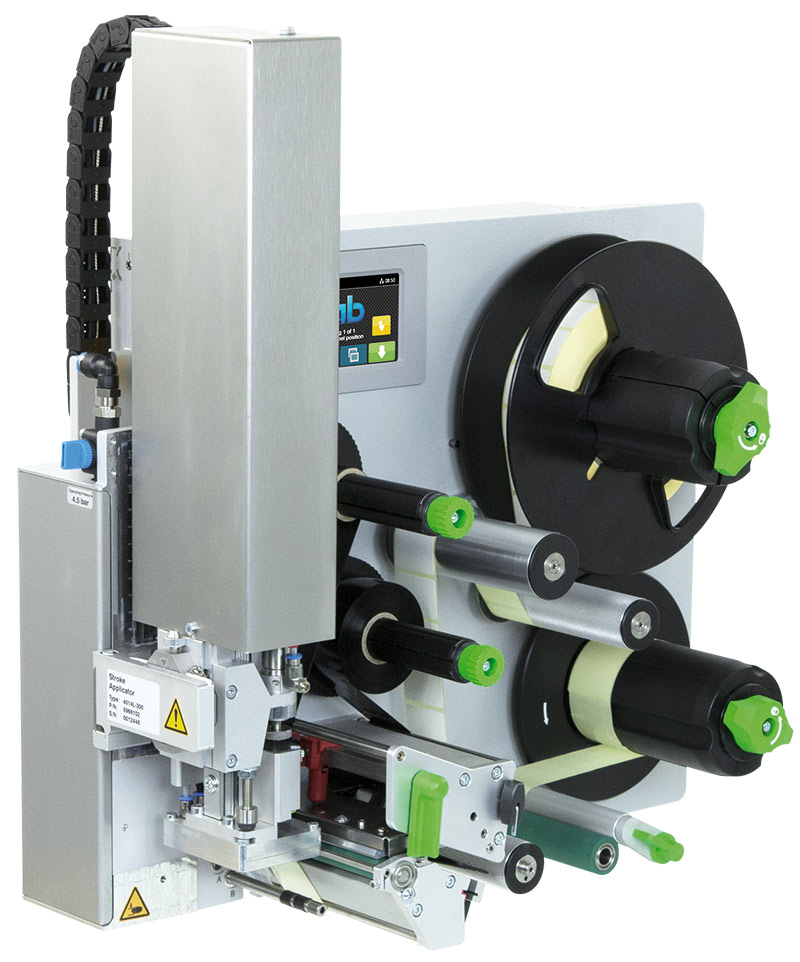

Sistemi di stampa ed etichettatura HERMES Q
Per la stampa e l’applicazione automatica di etichette nelle linee di produzione

Marcatura completamente automatiche

Tre tipi di stampante per etichette di piccole dimensioni, un’ampia gamma di accessori oppure per le etichette Odette, UCC e GS1 per le applicazioni logistiche

Diversi tipi di applicatore applicano l’etichetta sui prodotti o sugli imballaggi tramite arrotolamento, soffiaggio o compressione.

Tutti i tipi possono essere ruotati in verticale fino a 360°, oppure inseriti in posizione di montaggio orizzontale.

Standard Option Opzione

Sistema di stampa ed etichettatura	HERMES Q2		HERMES Q4			HERMES Q6.3
Testina di stampa
Trasferimento termico
Termica diretta	-	-			-
Risoluzione di stampa dpi	300	600	203	300	600	203	300
Velocità di stampa fino a mm/s	300	150	300		150	250
Larghezza di stampa fino a mm	56,9	54,1	104	108,4	105,7	168	162,6
Etichette
Diametro esterno rotolofino a mm	205 / 305
Larghezza mm	4 - 58		10 - 114			46 - 174
Altezza da mm	3		4			6
Nastro pigmentato
Lato colorato	esterno o interno
Lunghezza fino a m	600
Misure e pesi del dispositivo
Larghezza x Altezza x Profondità¹⁾ mm	207 x 430 x 500		260 x 430 x 500			320 x 430 x 500
Peso kg	15 / 16		16 / 17			20
Interfacce
RS232-C
USB per un PC
Ethernet / Ethernet switch a 2 porte	/
Host USB
Interfaccia digitale I/O
Periferica
Spia di segnalazione	tramite host USB

con rotolo di etichette del diametro di 305 mm
