Impresoras de etiquetas
XD Q
Imprime a doble cara en una sola operación

XD Q para materiales continuos como tubos aplanados o aplicaciones textiles
La impresora XD Q tiene dos cabezales de impresión. Tras la impresión, una escobilla disipa la carga electrostática.

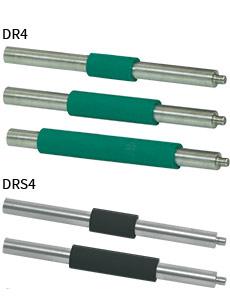

Cuando se imprime con alta energía calorífica, un separador garantiza la fiabilidad del proceso al separar de forma segura el ribbon del material. Un rodillo adicional mantiene el material en tensión.
Aplicación textil
Etiquetado de cables
Etiquetas
Estándar
Opcional
Impresora de etiquetas | XD Q4/300 | XD Q4.2/600 |
---|---|---|
Cabezal | ||
Principio de impresión | Transferencia térmica | |
Resolución de impresión dpi | 300 | 600 |
Velocidad de impresión hasta mm/s | 200 | 100 |
Anchura de impresión hasta mm | 105,7 | 54,1 |
Etiquetas | ||
Diámetro exterior del carrete hasta mm | 300 | |
Anchura mm | 10 - 110 | |
Altura a partir de mm | 20 | |
Ribbon | ||
Lado del color | exterior o interior | |
Longitud hasta m | 600 | |
Dimensiones y peso de la impresora | ||
Ancho x alto x fondo mm | 248 x 395 x 594 | |
Peso kg | 21 | |
Electrónica | ||
Frecuencia de pulsos del procesadorMHz | 800 | |
Memoria de datosMB | 50 | |
Memoria de trabajo RAMMB | 256 | |
Puertos de conexión | ||
RS232-C, USB para PC, Ethernet, periféricos, USB host, Wi-Fi | ![]() |
|
Interfaz E/S digital | ![]() |
