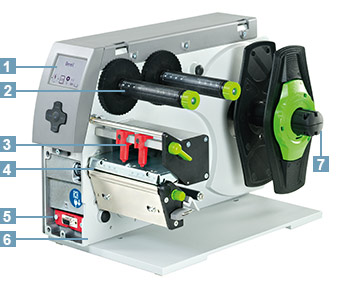

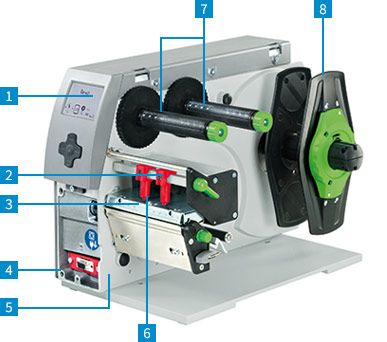

1. Big graphic display

White backlight for optimum readability.

2. Ribbon holder

Simple and centered insertion of the ribbon with the three-part tightening axles. The imprinted rule on spindle simplifies ribbon positioning.

3. No printhead adjustment

The printhead is pressed down with two sliding toggles. Due to the centre alignment of the materials there is no need to do adjustments and settings at the printhead.

4. Material guide

Precise printing as the material guide is located directly behind the print roller. The width is automatically adjusted and centered with a single knob.

5. Peripheral connection

Add-on modules such as cutter, perforation cutter and stacker are easy to connect.

6. Solid metal housing

Made of die-cast aluminum. All components are mounted on it.

7. Roll holder

Available for core diameters from 38 mm. (We provide adapters for core diameters wider than 76 mm for improved label winding). The material is automatically centered. The spring-mounted margin stop ensures constant tension during feeding, thus ensuring a highly precise imprint.

Precise print with labels from cab

Every job has different requirements.

Integrate cab printers into SAP R/3

Controlling cab label printers quickly and easily from SAP R/3 using SAPScript.

Overview technical data A+ and X series (PDF)

Standard Option

Label printer	A4+M
Print head
Print method: Thermal transfer
Print method: Thermal direct		-
Print resolution dpi	300	600
Print speed up to mm / s	125	100
Print width mm	105,6	105,6
Material
Labels, continuous rolls or fanfolded: Paper, cardboard, textile, plastics such as PET, PE, PP, PI, PVC, PU, acrylate
Material thickness mm / weight g / m²	0,05 - 0,8 / 60 - 300
Width labels¹⁾ mm	4 -106
Width continuous material / liner mm	10 - 110
Width continuous shrink tube mm	4-85
Height¹⁾ without back-feed from mm	5
Height¹⁾ up to mm	4000	1000
Media roll: Outside diameter up to mm	205
Media roll: Core diameter mm	38 - 100
Media roll: Winding	Outside or inside
Ribbon
Ink	Outside or inside
Roll diameter up to mm	80
Core diameter mm	25
Ribbon length variable up to m	500
Width²⁾ up to mm	114
Dimensions printer
Height mm	274
Depth mm	446
Width mm	242
Weight kg	9
Label sensor
Gap sensor: For leading edge or punch marks and end of material
Reflective sensor from the bottom / from the top
Distance from center to the left mm	0 - 53
Electronics
Processor 32 Bit clock rate MHz	266
RAM MB	64
Memory IFFS MB Flash	8
Slot for CompactFlash Type I memory card
Slot for Wireless LAN card
Battery buffer for real-time clock, printout of time and date, data storage on shut-down
Warning signal: acoustic signal in case of error
Interfaces
Centronics bi-directional acc. to IEEE 1284
RS232 C 1.200 up to 230.400 Baud / 8 Bit
USB 2.0 High Speed Slave for PC connection
Ethernet 10 / 100 Base T, LPD, RawIPprinting, ftp printing, DHCP, HTTP, FTP, SMTP, SNMP, TIME, Zeroconf, mDNS, SOAP
RS422, RS485 1.200 up to 230.400 Baud / 8 Bit
Peripheral connection
WLAN Card 802.11b/g WEP/WPA PSK (TKIP)
2 x USB master for external operation panel, keyboard, scanner, service key, USB flash drive
Operating data
Power supply	100 - 240 V ~ 50 / 60 Hz, PFC
Power consumption	100 - 300 W depending on type of printer
Temperature / humidity: Operation	+ 5 - 40°C / 10 - 85% not condensing
Temperature / humidity: Stock	+ 0 - 60°C / 20 - 85% not condensing
Temperature / humidity: Transport	– 25 - 60°C / 20 - 85% not condensing
Approvals	CE, FCC class A, CB, CCC, UL

For more technical data please read the product brochure (PDF)

Limitations may apply to small labels, thin materials or strong adhesives. Critical applications need to be tested and approved.
The ribbon should roughly be the same width as the label in order to avoid folding.

Precise print with labels from cab

Every job has different requirements.

Integrate cab printers into SAP R/3

Controlling cab label printers quickly and easily from SAP R/3 using SAPScript.

Go to overview accessories

expand all | collapse all

Extras
- Metal cover

  On request, the label printers A4+ and A6+ are available with metal cover. (supplied with A8+ as standard).
- Print roller DR4-M25, DR4-M50, DR4-M80

  Print roller DR4-M25
  For small and thin materials up to a width of 25 mm.

  Print roller DR4-M50
  For very thin materials from a width of 20 up to 50 mm.

  Print roller DR4-M80
  For very thin materials up to a width of 80 mm.
- Adapter 100 mm Ø

  To keep the bending to a minimum during stacking it is recommended to use a large core diameter.
- Memory Card

  CompactFlash Type I
- Standard keyboard USB

  Connection: USB, number of keys: 115
- External operation panel

  If the operation panel is not accessible, e.g. after installation within a facility, an external panel can be installed. Additional slots are available for a CF memory card Type 1 and a host interface.
- Pause adapter PS7

  Basic version: typical | Dispensing version A2+, A4+, A6+: possible

  For printing in a label loop. The print job is stopped by the pause signal. The label being printed is finished first.

  I/O Interface
  Inputs: Pause, external error
  Outputs: no print job, printer not ready, print job active

Interfaces
- Centronics Interface

  bi-directional acc. to IEEE 1284
- Interface RS422/RS485

  1.200 up to 230.400 Baud/8 Bit
- Label selection box – I/O box

  From a higher-level control, like a PLC, up to 16 different labels can be selected from the memory card. The I/O box enables via abc programming to realize easy programming of the PLC with the 4 in- and outputs.
- WLAN card 802.11 b/g

Connecting cable
- Connecting cable RS232 C

  9/9 pin, length 3 m
- Patch cable CAT5e

  3 m, gray

Cutting, perforating, stacking labels

Cutter CU, Cutter tray

Basic version: typical | Dispensing version A2+, A4+, A6+: possible

Cutter CU
The cutter is used to cut paper, self-adhesive labels, cardboard, textiles or plastics and heat shrink tubes.

Cutter tray
Up to about 50 labels may be collected in the cutter tray.

Cutter	CU2	CU4		CU6	CU8
Used for printer model	A2+	A4+	A4+M, A4+T XD4, XD4T, XC4	A6+, XC6	A8+
Material width up to mm	67	120	110	180	232
Material weight cardboard gr / m²	60 - 500
Material thickness mm	0,05 - 0,8
Cutting length mm	> 5
Gap height up to mm	2,5
Cuts / min.	130	120		110	100
Stop print job, if	Final position of cutter not reached
Cutter tray 4 for A4+ / A4+ M
Label height up to mm	100

Perforation cutter and cutter PCU4

Basic version: typical | Dispensing version A4+: possible

The perforation cutter enables additionally perforating the material for manual separation later on.

Perforation cutter and cutter	PCU4
Used for printer model	A4+, A4+M, A4+T, XD4, XD4T, XC4
Material width up to mm	85
Material weight cardbaord gr / m²	60 - 300
Material thickness mm	0,05 - 0,8
Cutting length mm	> 5
Gap height up to mm	4,5
Cuts / min.	Cutting 120 / Perforating 150
Stop print job, if	Final position of cutter not reached
Perforating: Web width mm	0,5
Perforating: Web distances mm	2,5 or 10

Stacker with cutter ST4

ST4 / L: Basic version: typical | Dispensing version A4+: possible
ST4 / M: Basic version: typical | Dispensing version A+ series: not possible

The printed materials are cut and stacked. The print job is stopped as soon as the maximum pile height is reached. Even stiff or curved materials may be processed to some extent.
We recommend to do the material testings at our facilities.

Stacker with cutter	ST4 / L	ST4 / M
Used for printer model	A4+, XC4	A4+M, A4+T, XD4, XD4T
Material width up to mm	20 - 110	20 - 100
Material weight cardboard gr / m²	60 - 300
Material thickness mm	0,05 - 0,8
Cutting length mm	20 - 150
Gap height up to mm	1,2
Cuts / min.	120
Stop print job, if	Final position of cutter not reached, cover open, stack height reached
Pile height up to mm	100

Storage table label W x H
Storage table and protective cover are adapted to the label size and need to be ordered separately.

Base frame A4+

Basic version: typical | Dispensing version A+ series: not possible

The base frame is used to place the devices on the table
in any position.

Rewinding, unwinding labels

External rewinder ER4/6/8 with built-in power supply

Basic version: typical | Dispensing version A2+, A4+, A6+: possible

The rewinder may be attached to any other printer.
All other technical data comply with rewinder ER1/2/3.

External rewinder	ER4/210		ER4/300		ER6/300	ER8/300
Application	A2+	A4+, A4+M, A4+T, XC4, XD4, XD4T	A2+	A4+, A4+M, A4+T, XC4, XD4, XD4T	A6+, XC6	A8+
Material width up to mm	67	120	67	120	180	235
Roll Ø max. mm	205	205	300	300	300	300
Core Ø mm	40 / 76
Label winding	outside or inside
Operating voltage	100 – 240 V~ 50 / 60 Hz
Connecting set for	ER / EU
Adapter for XC4 / XC6	RG4		RG4		RG6	-

External unwinder EU4/6/8

Basic version: typical | Dispensing version A2+, A4+, A6+: possible

The unwinder ensures a smooth label feed for heavy rolls. Both inside and outside wound rolls may be used.

External unwinder	EU4 / 300		EU6 / 300	EU8 / 300
Application	A2+	A4+, A4+M, A4+T	A6+	A8+
Material width up to mm	67	120	180	235
Roll Ø max. mm	300	300	300	300
Core Ø mm	40 / 76
Label winding	outside or inside

Software
- Software tools

  Direct programming with J-Script

  Replace files and integration in SAP R/3 *

  abc – Basic Compiler

  Database Connector

  Printer monitoring with Intranet and Internet

  Administration Network Manager

  Overview software tools
- Printer drivers Windows

  WHQL certified Windows printer driver for
  Windows XP, Windows Server 2003, Windows Vista, Windows Server 2008, Windows 7, Windows 8, Windows Server 2008 R2 and Windows Server 2012

  Our printer drivers are officially certified and signed by Microsoft. They ensure optimum stability on your Windows operating system.

  Microsoft® is a registered trademark of Microsoft Corporation.

  Overview cab label printer drivers
- Printer drivers Apple-Mac/Linux

  Apple-Mac OS X® driver *
  Alternatively, cab offers a CUPS-based printer driver for programs using Mac OS X.

  Linux driver *
  Alternatively, cab offers a CUPS-based printer driver for programs using Linux.

  * only A+ series

  Mac OS® is a registered trademark of Apple Computer, Inc.

  Overview cab label printer drivers
- Label software

  cablabel R2+
  Powerful label software that is free of charge and specially designed for cab printers and print and apply systems.

  cablabel R2+

  Studio Code: one single level that supports all cab printers
  Studio Code is an in-house designed label software fully supporting all functions of cab printers.

  Additional label software
  Highest possible variability – other commercially available label software solutions, such as Codesoft, NiceLabel, Easylabel, Bartender, Label Matrix or Labelview support the cab label printers and labeling systems.

  More label software
- Programmer's guide

  A general programmer's guide explaining and describing commands for different printer models via direct programming.

  Programming Manual
  Programming Manual A+ Series, XD4, MACH4, PX and all printing systems based on the cab „X2“ board

Accessories for cab label printers

Which accessories fit to which label printers you can see in overview all accessories A+ and X series.

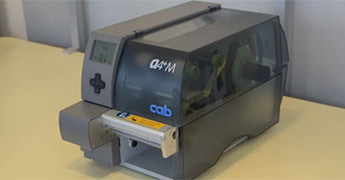

Video: A4+M - Center guided printer
