THS+ laser typeplate handling

THS+ LogoDurably mark flat parts as e.g. typeplates or marker sheets made of plastics or metal

The laser typeplate handling THS+ allows to durably mark flat parts as e.g. typeplates or marker sheets made of plastics or metal.

Designed for the processing of nameplates for motors, pumps, control cabinets, and others it is used for applications in demanding industrial environments where the contents needs to be clearly legible even after years.

Two different designs are available

Type 1 "THS+Basic"
Plates or other flat parts up to a thickness of 4 mm are individually inserted into a jig, fed after start, marked and then automatically rejected.

Type 2 "THS+M"
The plates are stacked in a magazine. The upper one of a stack is marked and then automatically rejected.


8.2 Customer-specific jig for THS+Basic

9.2 Customer-specific magazine for THS+M

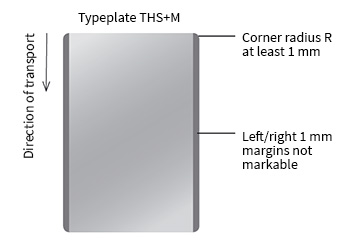

THS+M detail

Overview: Which modules can be integrated into the different laser marking systems?

Marking lasers FL+

cab marking lasers FL+ offer highest beam quality and pulse peak power.

Precise, fast, economic

Showcase Hannover Messe 2016

Marking on 'smart' key rings with cab fiber lasers.

Live at the SAP booth

  8.1 9.1
  Laser typeplate handling THS+Basic THS+M
Working area HxWxD mm 10x120x120 -
Typeplate WxH min. mm - 40x40
Typeplate WxH max. mm   110x90
Positioning accuracy mm ±0.2
Handling motor driven Linear slide Magazine
Plates 0.5 mm piece 1 100
For plano-spherical lens type 160.1
Marking field WxH mm 112x112 110x88
Working distance mm 202
Thickness plate max. mm 4 0.5-1.0
Workpiece weight max. kg 0.5 0.1
Dimensions and weight
HxWxD mm 299x176x340
Laser protection window HxW mm 100x98
Connector extraction Ø mm 50
Weight kg 14
Operating data
Operating voltage/frequency 100-240 VAC ~ 50/60 Hz
Power ON/OFF
Temperature/air humidity operation 5-40 °C/10-85% not condensing
Temperature/air humidity stock 0-60 °C/20-80% not condensing
Temperature/air humidity transport –25-60 °C/20-80% not condensing
Laser safety class EN60825-1 Class 1
Approval CE
Control panel THS+Basic THS+M
Push buttons illuminated Tray OPEN/CLOSE
Manual rejection
Switch E-Stop
Safety circuits Closed
Linear slide Position -
Magazine - Position
Typeplate In marking position
Interlock/E-Stop FL+
Digitale I/O FL+
Extraction and filter device AF1.1
