Overview types label printer EOS

The new EOS series combines all functions of a solid label printer with highest ease of operation. The touchscreen LCD display is clearly designed for highest ease of use.

EOS1

EOS1 the compact for small work space. For label rolls up to 152 mm diameter.

vergrößern

1.1 Label printer	EOS1
Print resolution dpi	203	300
Print width up to mm	108	105,7
Print speed up to mm/s	125	125
Label roll Ø up to mm	152	152
Power supply	100 - 240 VAC 50/60 Hz

EOS4

EOS4 for label rolls up to 203 mm diameter. Further technical data are identical with EOS1.

vergrößern

1.2 Label printer	EOS4
Print resolution dpi	203	300
Print width up to mm	108	105,7
Print speed up to mm/s	125	125
Label roll Ø up to mm	203	203
Power supply	100 - 240 VAC 50/60 Hz

"Without proper labeling our centralized distribution center would not work at all. ... We have set up various scanning stations at which these printers are in use. The experience that we have made so far is very good indeed."

Thomas Reif, Head of Logistics at OSIANDER in Tübingen-Derendingen
Case study: Giving books an identity - On a flying visit at the distribution center

Mobile printing

In production, warehousing or agriculture, wherever labels are required and access to electrical connection is missing. An input voltage of 24 V enables the printer to be power supplied with any powerful rechargeable battery.

cab offers a battery pack optimized for EOS as an option. The EOS battery pack 2 allows the printing of more than 500 labels per charge for a label size of 100 x 68 mm at colour coverage of 15%. With battery pack 4 the capacity is doubled.

EOS1 mobile

EOS1 mobile with 24 V power supply. For label rolls up to 152 mm diameter.

vergrößern

Standard delivery without EOS battery pack

1.3 Label printer	EOS1 mobile
Print resolution dpi	300*
Print width up to mm	105,7
Print speed up to mm/s	125
Label roll Ø up to mm	152
Power supply	16,5 - 25 VDC

*203 dpi on request

EOS4 mobile

EOS4 mobile for label rolls up to 203 mm diameter. All further technical data are identical with EOS1 mobile.

vergrößern

Standard delivery without EOS battery pack

1.4 Label printer	EOS4 mobile
Print resolution dpi	300*
Print width up to mm	105,7
Print speed up to mm/s	125
Label roll Ø up to mm	203
Power supply	16,5 - 25 VDC

*203 dpi on request

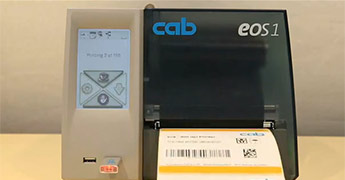

Play

Video: Label printer EOS series

We show you features and benefits.

 Watch video

 See more videos EOS Series

1 Touchscreen LCD display

Clearly designed for highest ease of use.

2 USB interfaces

2 USB interfaces on the operation panel, 1 USB interface on the back for memory stick, service key, WLAN, bluetooth, keyboard and scanner.

3 Roll holder

The label roll is inserted and centered automatically when closing the cover.

4 Ribbon retainer

The stop is adjustable to the foil width.

5 Gap or reflective sensor

The sensor position is adjustable by the red knob via a spindle. The set position is displayed with a LED.

6 Label guide

The guides are adjusted to the material width with the green knob.

7 Printhead 203 or 300 dpi

The printhead can be easily removed manually for cleaning or replacement.

8 Drive roller

It can be removed for cleaning or replacement without tools. As small labels may cause friction between printhead and print roller it is recommended to use in this case narrow print rollers with a width of 25, respectively 50 mm ensuring a better print image and extending the life of the printhead.

Standard     Option	1.1		1.2		1.3	1.4
Label printer	EOS1		EOS4		EOS1 mobile	EOS4 mobile
Print head
Print method	Thermal transfer / Thermal direct
Print resolution dpi	203	300	203	300	300	300
Print width up to mm	108	105,7	108	105,7	105,7	105,7
Print speed mm/s	30, 40, 50, 75, 100, 125
Material 1)
Labels – continuous material	Paper, cardboard, textile, plastics such as PET, PE, PP, PVC, PU, acrylate, PI
on rolls
fanfolded					-	-
Thickness mm / Weight g/m2	0,055 – 0,7 / 60 – 240
Width lables mm	single lane: 10 –116, multi lane: 5 –116
Width liner mm	25 –120
Width continuous material mm	5 –120
Width flat pressed tubesmm	5 - 85
Label height without back-feed mm	5 - 1000
Media roll outside diameter up to mm	152		203		152	203
Media roll core diameter mm	38 – 76
Media roll winding	Outside or inside, when cutting preferably outside
Ribbon
Ink	Outside or inside
Roll diameter up to mm	72
Core diameter mm	25,4
Ribbon length up to m	360
Widthmm	50 –114
Dimensions
Height x Depth x Width mm	189 x 322 x 253		245 x 412 x 264		189 x 322 x 253	245 x 412 x 264
Weight kg	4		5		4	5
Label sensor
Gap sensor	For leading edge or punching marks and end of material
Reflective sensor from the bottom	For print marks
Distance from the center to the left mm	0 - 58
Electronics
Processor High Speed 32 Bit clock rate MHz	400
RAM MB	64
Memory IFFS MB Flash	16
Battery buffer for real time clock , printout of time and date, data storage on shut-down
Warning signal: acoustic signal in case of error
Interface
USB 2.0 full speed device for PC connection
Ethernet 10/100 Base T, LPD, RawIP-Printing, ftp-Printing, DHCP, HTTP, FTP, SMTP, SNMP, TIME, Zeroconf, mDNS, SOAP
Periphery connection
2 x USB Host on operation panel, connection up to 100 mA for memory stick, service key, WLAN or bluetooth
1 x USB Host on the back, connection up to 500 mA for keyboard, scanner, WLAN or bluetooth
Operation panel
Display	Touchscreen 160 x 255 pixel with back light
Screen diagonals mm	96
Operating data
Power supply	100 – 240 VAC, 50/60 Hz				16,5 –25 VDC
Power consumption	Energy saving mode 1,8 W/typical 45 W/max. 100 W
Temperature/humidity operation:	+5 – 40°C/10 – 85 %, not condensing
Temperature/humidity stock:	+0 – 60°C/20 – 80 %, not condensing
Temperature/humidity transport:	-25 – 60°C/20 – 80 %, not condensing
Approvals	CE, FCC class A, CB, CCC, UL



 For more technical data see our product catalog (PDF)

1. All materials are approximate values. Small labels, very thin, narrow, thick or stiff materials as well as labels with strong adhesives need to be tested first.

Standard     Option		1.1	1.2	1.3	1.4
Zubehör		EOS1	EOS4	EOS1 mobile	EOS4 mobile
2.1	Print roller DR4-25,  DR4-50
2.2	Standard keyboard German
2.3	USB memory stick
2.4	WLAN USB stick (no longer available)
2.5	Nano Bluetooth USB adapter
2.6	Label selection box – I/O box
2.7	Patch cable CAT5e
2.8	Cutter
2.9	External unwinder			*	*
2.10	Brake for fanfold labels			*	*
2.11	Battery pack	-	-
Software
11.4	Databas Connector
11.7	cablabel S3 Lite
	cablabel S3 Pro
11.10	Programming manual

* not with battery pack

Device functionality and compliance with CE standards are only warranted by using the accessories provided or recommended by cab.
