Products Marking Print and Apply

Hermes+ Applicators

Applicators for Hermes+2 and Hermes+4 with tamp pad or blow pad

For the precise applying in real time of very small to medium sized labels with Hermes+2 and Hermes+4. The tamp pad is positioned above the peeling, the liner directly transfers the label to the tamp pad. The precision guide enables the labels to be applied or blown on the product with great accuracy.

  • Applicator Type 4114vergrößern zoom in

    Type 4114: With horizontal precision guide in feed direction to enable the label to be applied on the product via lifting cylinder.

  • Hermes+ Applicator 4114 view video view video

    Typ 4114



  • Applicator Type 4214vergrößern zoom in

    Type 4214: With horizontal rotary cylinder (angle of rotation 90 other 180°) to enable the label to be applied on the product in difficult installation positions.

  •
  • Applicator Type 4414vergrößern zoom in

    Type 4414:  With adjustable horizontal precision guides in X and Y direction to enable the labels to be moved to both directions by Y = 13 mm and X = 5 mm.

  • Hermes+ Applicator 4414view video view video

    Type 4414



Applicators for Hermes+4 and Hermes+6

The applicators enable the labels to be applied downwards, upwards or sideways on the product. The size of the tamp is customized to any label dimension. Depending on the operation mode the tamp surface is stiff, damped or spring-forced. The applicators are capable for Hermes+4 and Hermes+6.

  • Applicator Type 4014/4016vergrößern zoom in

    Type 4014/4016: For applying middle up to larger-sized labels with tamp or blow pad, with flat plate, spring mounted plate or roll-on pad.

  • cab Hermes+view video view video

    Type 4016



  • Applicator Type 4314/4316vergrößern zoom in

    Type 4314/4316: For applying larger-sized labels, optionally spring forced to compensate inclined surfaces.

  •
  • Applikator Typ 3014/3016vergrößern zoom in

    NEW  Pivot Applicator Type 3014/3016: Labels can be applied from top, backside, frontside and from the side.

  • cab Hermes+ Video ansehen view video

    Pivot Applicator Type 3014/3016



  • Applikator Typ 4714vergrößern zoom in

    NEW  Flag Aplicator Type 4714: The Flag Labelling Applicator is used for symmetric labels, especially for round workpieces, e.g. cables.

  • cab Hermes+ Video ansehen view video

    Flag Applicator Type 4714



Dispensing module for Hermes+4 and Hermes+6

  • Dispensing Module Type 5114/5116vergrößernzoom in

    Dispensing module Type 5114/5116: Mechanical dispensing module.
    Print speed and conveyor speed have to be synchronized

  •

More versions on request.

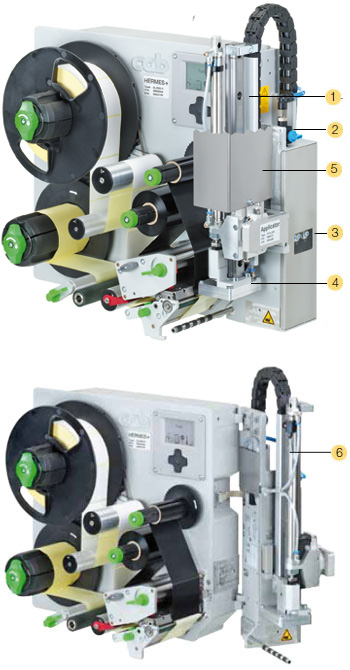

1. Long operating life

The linear caged ball guide is precise and wear resistant.

2. Variable product heights

The lift cylinder allows labelling in different heights. It is standard available in 200/300/400 mm length. Other dimensions on request.

3. High process reliability

The supporting air jet streaming and the vacuum as well as the cylinder speed are adjustable and monitored via sensors.

4. Real time application

Applicators for small and big labels permit the application of labels with a height of 4 - 250 mm and a width of 4 - 174 mm.

5. Protective cover

As a standard, cylinder and guide are protected by a cover. cab offers customized covers for labelling work stations which are adapted to the product fixture.

6. Pivot applicator

Easy and fast access to the printer‘s mechanics for material change or maintenance work.

  •

Applicator Type 4114

Label width:
Hermes+2: tamp pad 4 - 58 mm, blow pad 10 - 58 mm
Hermes+4: tamp pad 10 - 114 mm, blow pad 10 - 114 mm

Label height:
Tamp pad: 4 - 80 mm
Blow pad: 10 - 80 mm

Distance to product from bottom line printer at cylinder stroke:
200 mm up to: 135 mm (tamp pad), 140 mm (blow pad)
300 mm up to: 235 mm (tamp pad), 240 mm (blow pad)
400 mm up to: 335 mm (tamp pad), 340 mm (blow pad)



Applicator Type 4214

Label width:
Hermes+2: Tamp pad 4 - 58 mm, Blow pad 10 - 58 mm
Hermes+4: Tamp pad 4 - 80 mm, Blow pad 10 - 80 mm

Label height:
Tamp pad: 4 - 40 mm
Blow pad: 10 - 40 mm

Distance to product from bottom line printer at cylinder stroke:
200 mm up to: 135 mm (tamp pad), 140  mm (blow pad)
300 mm up to: 235 mm (tamp pad), 240 mm (blow pad)
400 mm up to: 335 mm (tamp pad), 340 mm (blow pad)



Applicator Type 4414

Label width:
Hermes+2: tamp pad 4 - 58 mm, blow pad 10 - 58 mm
Hermes+4: tamp pad 4 - 114 mm, blow pad 10 - 114 mm

Label height:
Tamp pad: 4 - 80 mm
Blow pad: 10 - 80 mm

Distance to product from bottom line printer at cylinder stroke:
200 mm up to: 135 mm (tamp pad), 140 mm (blow pad)
300 mm up to: 235 mm (tamp pad), 240 mm (blow pad)
400 mm up to: 335 mm (tamp pad), 340 mm (blow pad)



Applicator Type 4014/4016

Label width:
Hermes+4: tamp pad 20 - 114 mm, tamp pad spring-forced 80 -114 mm, blow pad 20 - 114 mm, roll-on pad 25-114 mm
Hermes+6: tamp pad 50 - 174 mm, tamp pad spring-forced 80 -174 mm, blow pad on request, roll-on pad 50-174 mm

Label height:
Tamp pad: 20 - 210 mm
Tamp pad spring-forced: 80 - 210 mm
Blow pad: 20 - 100 mm
Roll-on pad: 80 - 250 mm


Distance to product from bottom line printer at cylinder stroke:
200 mm up to: 135 mm (tamp pad), 130 mm (tamp pad spring-forced), 140 mm (blow pad), 160 mm (roll-on pad)
300 mm up to : 235 mm (tamp pad), 230 mm (tamp pad spring-forced), 240 mm (blow pad), 260 mm (roll-on pad)
400 mm up to: 335 mm (tamp pad), 330 mm (tamp pad spring-forced), 340 mm (blow pad), 360 mm (roll-on pad)



Applicator Type 4314/4316

Label width:
Hermes+4: tamp pad spring-forced 100 - 114 mm
Hermes+6: tamp pad spring-forced 100 - 174 mm

Label height:
Tamp pad spring-forced: 100 - 250 mm

Distance to product from bottom line printer at cylinder stroke:
200 mm up to: 130 mm (tamp pad spring-forced)
300 mm up to: 230 mm (tamp pad spring-forced)
400 mm up to: 330 mm (tamp pad spring-forced)

Applicator Type 3014/3016

Label width:
Hermes+4: tamp pad 25 - 114 mm, tamp pad spring-forced 80 -114 mm, blow pad 25 - 114 mm, roll-on pad 60-114 mm
Hermes+6: tamp pad 25 - 174 mm, tamp pad spring-forced 80 -174 mm, blow pad on request, roll-on pad 60-174 mm

Label height:
Tamp pad: 25 - 250 mm
Tamp pad spring-forced: 80 - 250 mm
Blow pad: 25 - 100 mm
Roll-on pad: 80 - 250 mm

Applicator Type 4714

Label width:
Hermes+4: Tamp pad 100 mm

Label height:
Tamp pad: 10 - 50 mm

Distance to product from bottom line printer at cylinder stroke:
200 mm up to: 160 mm (tamp pad)
300 mm up to: 260 mm (tamp pad)
400 mm up to: 360 mm (tamp pad)

Dispensing Module Type 5114/5116

Label width:
Hermes+4: dispensing plate 25 - 114 mm
Hermes+6: dispensing plate 50 - 174 mm

Label height:
Dispensing plate: 25 - 250 mm

Distance to product from bottom line printer:
80 mm (dispensing device)


Video: Hermes+ Applicator 4114
