Hermes+ 貼標手臂

適用 Hermes+2 及Hermes+4 的壓貼或吹貼手臂

 Hermes+2 及 Hermes+4 是專為極小標籤到一般尺寸標籤所設計的貼標應用。墊片已就位於剝離位置上方，可直接吸附轉移標籤。精密的移轉路徑使標籤正確地黏貼或吹貼於產品上。

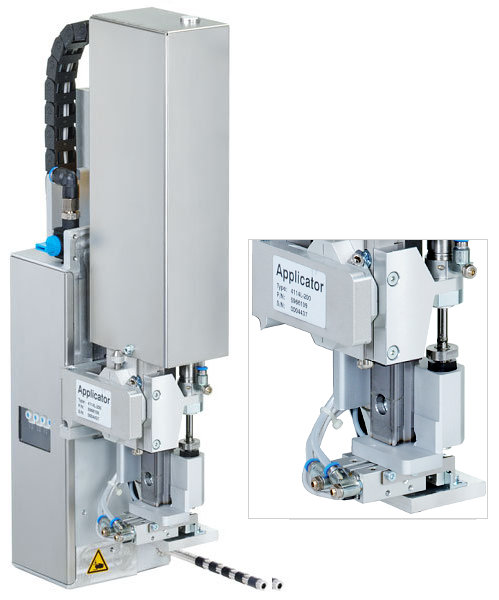

  • Applicator Type 4114vergrößern 放大圖片

    型號 4114: 透過水平式自剝離位置移轉標籤至墊片上，並上下垂直運作貼標手臂將標籤黏貼於產品上。

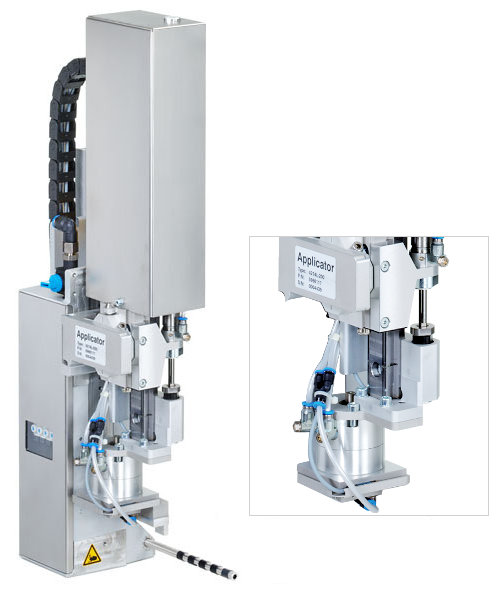

  • Applicator Type 4214vergrößern 放大圖片

    型號 4214: 貼標手臂的墊片從標籤剝離位置吸附標籤後，可水平旋墊片(最多旋轉角度200°)後再垂直下貼標籤於產品上。

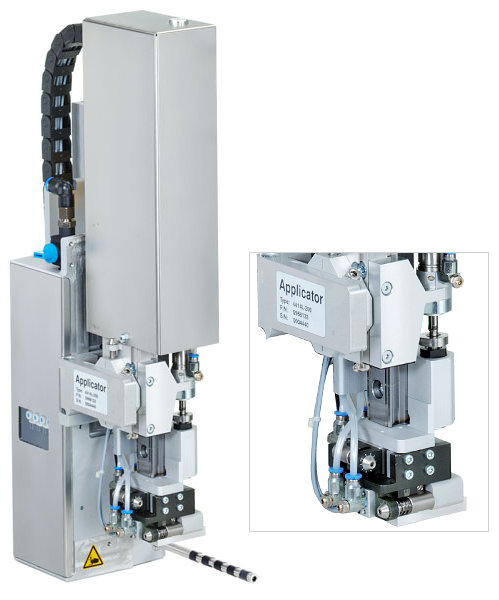

  • Applicator Type 4414vergrößern 放大圖片

    型號 4414:  透過水平式調整Ｘ軸跟Ｙ軸的墊片位置再並黏貼標籤至產品上。兩種方向最多可各平移 ±8 mm。

  •

適用 Hermes+4 and Hermes+6的貼標手臂

貼標手臂系列包括有垂直下貼式、垂直上貼式，或水平側貼式黏貼標籤於產品上。墊片可依標籤尺寸客製。根據不同的貼標物體表面，墊片表面可以選擇是一般標準硬面，加裝泡棉緩衝貼片或是加裝彈簧伸縮。 以下這些貼標機種皆適用於 Hermes+4 and Hermes+6.

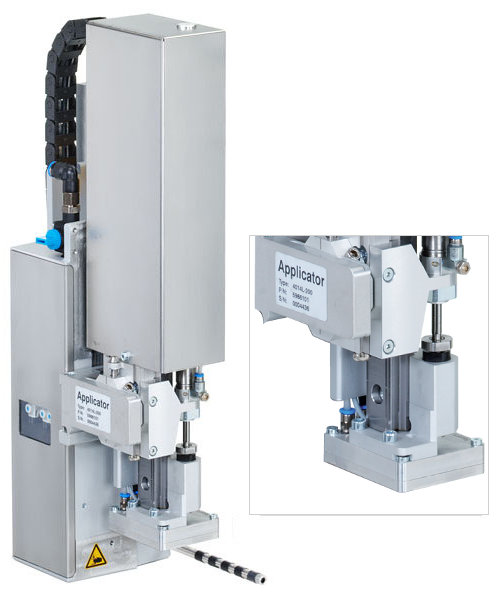

  • Applicator Type 4014/4016vergrößern 放大圖片

    型號 4014/4016: 適用於大尺寸標籤，對於不平整的貼標物體表面，可選擇加裝彈簧的墊片。

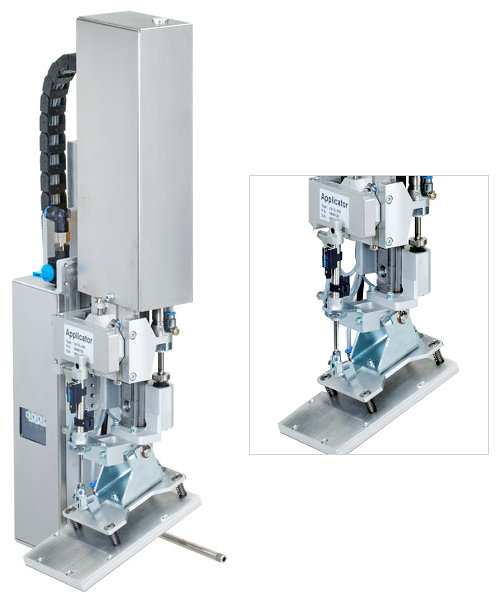

  • Applicator Type 4314/4316vergrößern 放大圖片

    型號 4314/4316: 適用於大尺寸標籤及不平整的貼標物體表面以加裝彈簧的墊片調整貼標高度落差。

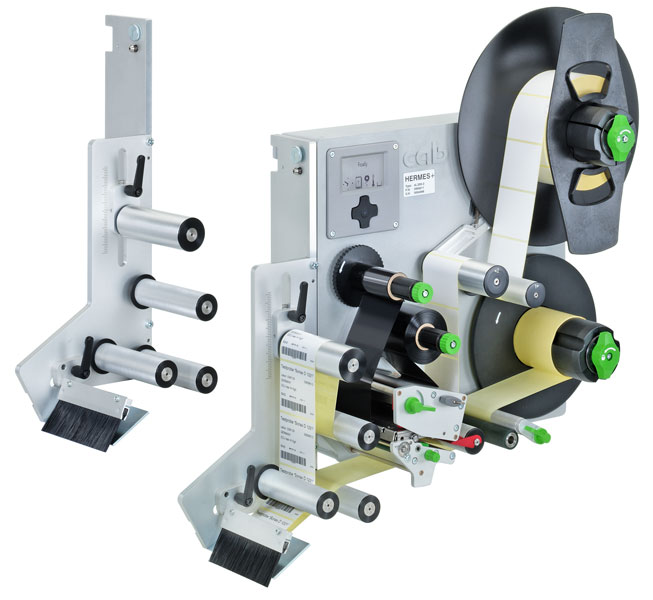

  • Dispensing Module Type 5114/5116vergrößern放大圖片

    剝離模組 型號 5114/5116: 機械式剝紙貼標模組。
    列印速度與輸送度速度必須一致配合。

  •



其他客製機種請洽詢。

1. 操作生命長

 傳動汽缸裝置採用滾珠軸承，低磨損。

2. 滿足不同貼標物體高度

可調整氣壓圓柱貼標於不同高度的各類產品。出廠所標準配備之氣壓圓柱亦有不通高度 200/300/400mm 之選擇。其他尺寸請洽詢。

3. 高可靠度

透過感應器監測可調整氣流、真空壓力、
與下壓速度。

4. 即時貼標

適用於標籤高度為25-200mm及寬度為20-116mm。

5. 保護外蓋

 傳動氣缸組件是為保護外蓋所包覆，cab 也可提供下方貼標產品運作時的保護裝置。

6. 貼標機可移式設計

可簡易快速地安裝於條碼印表機，方便零件更換，或保養工作。

  •

貼標手臂   型號 4114

標籤寬度 :
Hermes+2: 壓 貼  4 - 58 mm, 吹 貼 10 - 58 mm
Hermes+4: 壓 貼  10 - 114 mm, 吹 貼 10 - 114 mm

標籤高度 :
壓 貼 : 4 - 80 mm
吹 貼 : 10 - 80 mm

自條碼印表機座以下可貼標距離(手臂長度 ) :
200 mm up to: 135 mm (壓 貼 ), 140 mm (吹 貼 )
300 mm up to: 235 mm (壓 貼 ), 240 mm (吹 貼 )
400 mm up to: 335 mm 壓 貼 ), 340 m (吹 貼 )



貼標手臂   型號  4214

標籤寬度 :
Hermes+2: 壓 貼  4 - 58 mm, 吹 貼 10 - 58 mm
Hermes+4: 壓 貼  4 - 80 mm, 吹 貼 10 - 80 mm

標籤高度 :
壓 貼 : 4 - 40 mm
吹 貼 : 10 - 40 mm

自條碼印表機座以下可貼標距離(手臂長度 ) :
200 mm up to: 135 mm (壓 貼 ), 140 mm (吹 貼 )
300 mm up to: 235 mm (壓 貼 ), 240 mm (吹 貼 )
400 mm up to: 335 mm (壓 貼 ), 340 mm (吹 貼 )



貼標手臂   型號  4414

標籤寬度 :
Hermes+2: 壓 貼  4 - 58 mm, 吹 貼 10 - 58 mm
Hermes+4: 壓 貼  4 - 114 mm, 吹 貼 10 - 114 mm

標籤高度 :
壓 貼 : 4 - 80 mm
吹 貼 : 10 - 80 mm

自條碼印表機座以下可貼標距離(手臂長度 ) :
200 mm up to: 135 mm (壓 貼 ), 140 mm (吹 貼 )
300 mm up to: 235 mm (壓 貼 ), 240 mm (吹 貼 )
400 mm up to: 335 mm (壓 貼 ), 340 mm (吹 貼 )



貼標手臂   型號  4014/4016

標籤寬度 :
Hermes+4: 壓 貼  20 - 114 mm, 壓貼加裝彈簧  80 -114, 吹 貼 20 - 114 mm, 滾 貼 25-114 mm
Hermes+6: 壓 貼 50 - 174 mm, 壓貼加裝彈簧  80 -174, 吹貼請洽詢 , 滾 貼 50-174 mm

標籤高度 :
壓 貼 : 20 - 210 mm
壓貼加裝彈簧 : 80 - 210 mm
吹 貼 : 20 - 100 mm
滾 貼 : 80 - 250 mm


自條碼印表機座以下可貼標距離(手臂長度 ) :
200 mm up to: 135 mm (壓 貼 ), 130 mm (壓貼加裝彈簧 ), 140 mm (吹 貼 ), 160 mm (滾 貼 )
300 mm up to : 235 mm (壓 貼 ), 230 mm (壓 貼加裝彈簧 ), 240 mm (吹 貼 ), 260 mm (滾 貼 )
400 mm up to: 335 mm (壓 貼 ), 330 mm (壓貼加裝彈簧 ), 340 mm (吹 貼 ), 360 mm (滾 貼 )



貼標手臂   型號  4314/4316

標籤寬度 :
Hermes+4: 壓貼加裝彈簧   100 - 114 mm
Hermes+6: 壓貼加裝彈簧  100 - 174 mm

標籤高度 :
壓貼加裝彈簧 : 100 - 250 mm

自條碼印表機座以下可貼標距離(手臂長度 ) :
200 mm up to: 135 mm (壓貼加裝彈簧 )
300 mm up to: 235 mm (壓貼加裝彈簧  )
400 mm up to: 335 mm(壓貼加裝彈簧 )



剝離模組  型號 5114/5116

標籤寬度 :
Hermes+4: 剝離模組  25 - 114 mm
Hermes+6: 剝離模組  50 - 174 mm

標籤高度 :
剝離模組 : 25 - 250 mm

自條碼印表機座以下可貼標距離:
80 mm (剝離模組 )
