Description

Due to laser material treatment, gas and particle exposure may be generated being harmful to health and environment. The cab fume extraction systems are used to protect operator and environment against this danger.

Pictures

• zoom in

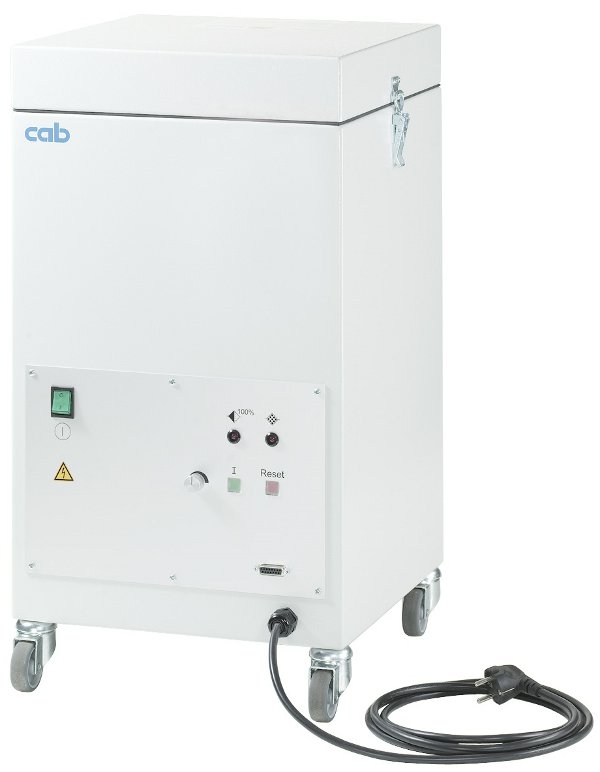

  Vacuum Piping / Fume Extractor

  30-320 m³ / hour extraction power

•

Details

Housing:
steel colour coated

Colour (standard):
RAL 7035

Dimensions L x W x H:
380 x 380 x 625 mm

Weight:
30 kg

Technical details

Extraction power:
30-320 m3 / hour

Max. underpressure:
12500 Pa

Filterset including:
prefilter, particle filter, active carbon filter

Continuous sound pressure level:
67 dB(A)

Sound pressure level DIN 45635-3:
82 dB(A)

Features:
speed regulation, filter control, drive control

Control

Power supply:
110 or 220 VAC - 50/60 Hz

Power consumption:
max. 1200 Watt

Protection class:
IP 42

Operation temperature:
+ 5 up to + 35°C

Connectors:
power inlet, digital interface

Documentation

• Catalogs

  • Title	Format	Version	Last change	Language
    LSG 100 EN	752.6 kB	01	20.12.2011	English
    Overview Product Marking	2.2 MB	8.0	31.01.2012	English
