A professional solution to laser mark plates, mainly out of steel or plastics

The Type Plate Handling THS4.2 / THS4.3 offers - based on the approved laser safety housing LSG100 - a professional solution to fully automatically laser mark plates, mainly out of steel or plastics.

The system is especially developed for the industrial use to handle large quantities in serial production.

THS4.2 stacks the plates in sequence. In addition to that, THS4.3 enables to handle the plates accoding to the FIFO principle with withdrawal even in the ongoing order processing. For priority order both systems offer an express unloading slot. By software, ongoing oders can be interrupted and single plates can be locked out.

The stack can be adjusted to different dimensions in a very easy way. Transport is independent of the plates' thickness.

Pictures and Video

zoom in
Type Plate Module THS4

up to 110x110 mm Marking area
zoom in

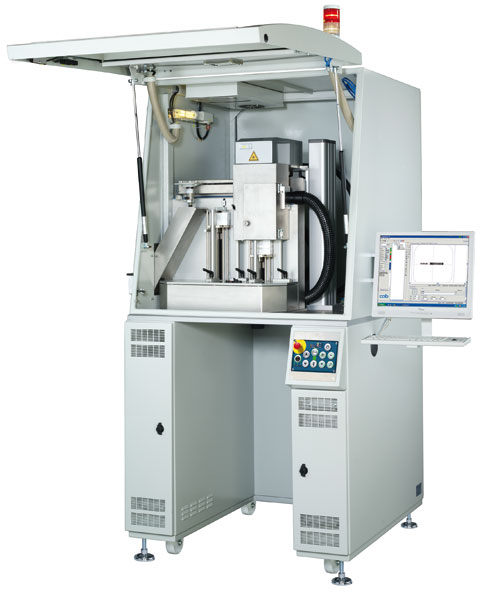

cab THS 4.2 - Type Plate Marking
zoom in

cab THS4.2 - Lasermarking Microscope Slides

Content of delivery

Operating manual
Main supply cable
Connecting cable FL, length 3 m
Connecting cable PC, length 3 m
Connecting cable filtering device, length 3 m
Pivot arm for LCD/TFT Monitor w/ Keyboard Tray

There is no better way to network marking!

Label printers, print & apply systems and marking lasers within a network.

Always the right connection

Lenze Operations GmbH: "A quantum leap forward"

Laser marking in the manufacture of gear boxes.

Read case study

Request a quote

Laser Safety Housing

Working Area l x w x h:
980 x 980 x 460 mm

F-Theta lens:
160

Marking area:
112 x 112 mm

Type plate thickness / width / length:
0,5 - 3 mm / 40 - 120 mm / 20 - 120 mm

capacity un loader stack:
250 mm

Z-Axis traversing range:
500 mm

Dimensions l x w x h:
1120 x 1210 x 2280 mm (w/o pivot arm)

Weight operable installed:
approx. 480 kg

Operating Data

Voltage:
220-240 V @ LSG 230 V
100-140 V @ LSG 120 V

Frequency:
50/60 Hz

Power consumption max.:
3500 Watt @ LSG 230 V
1750 Watt @ LSG 120 V

Laser safety class:
Class 1

Approvals:
CE
