Laser Marking System Label Marker
Laser Label Marker LM for labels out of laser-reactive or two-layer acrylic label stock
The cab laser label enables to create different-sized labels out of laser-reactive or two-layer acrylic label material. Labels up to a width of 120 mm are laser marked and adapted to the size requested. Two-layer acrylic material from 3M, TESA, BRADY or Tyco and Schreiner, Tyco material for laser-reactive label material can be used. So-called "family-sheets" are created without any problem by the help of the software supplied with the system. Labels are marked directly from roll to roll or singularized by the automatic cutter.
Pictures and Videos
-
zoom in

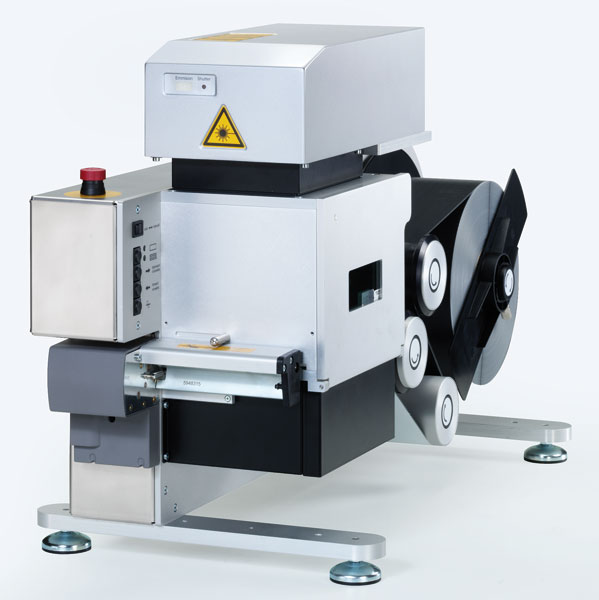

Laser Label Marker LM
up to 120 mm material width
-
view video
cab Label Marker
Marking ov UID labels
-
view video
cab Label Marker
Marking of cable attached signs
Variants
- External rewinder
- Cutter
- Barcode verifier
- Fume extractor
Label printers, print & apply systems and marking lasers within a network.
Variable labeling in exceptional resolution and quality.
Features and advantages
With a resolution of up to 1000 dpi the label marker marks exceptionally small fonts, two-dimensional barcodes and graphics. So-called "family-sheets" can be created without any problem.
- 3 possible F-Theta lenses
- solid aluminum / steel housing
- Permanent and resistant marking
Clean work
Particles and contaminants are extracted through the integrated vacuum air flow system.
Precise label material
Transport of the label material is guaranteed by a precision stepper motor drive system.
Resistant material
Laser markable materials are resistant to physical abrasion, chemical attack and outdoor environmental exposure to temperatures up to 300°C.
For Integration
Marking laser:
Ytterbium fiber laser FL10
Ytterbium fiber laser FL20
Possible F-Theta lenses:
F-Theta 160
F-Theta 254
Details
Housing:
aluminum / steel color coated
Dimensions
L x W x H:
802 x 375 x 408 mm @ F-Theta 160
802 x 375 x 583 mm @ F-Theta 254
L x W x H / operable installed:
802 x 440 x 520 mm @ F-Theta 160
802 x 440 x 730 mm @ F-Theta 254
Weight:
about 22 kg (without laser)
Working Area / Material
Marking area:
112 x 112 mm @ F-Theta 160
120 x 180 mm @ F-Theta 254
Thickness of material:
with cutter 0,055 - 0,3 mm
without cutter 0,055 - 3,0 mm
Weight of material (films):
300 gr/m²
Control
Power supply:
100 - 240 VAC - 50 / 60 Hz
Power consumption:
max. 150 Watt
Connectors / Operation buttons backside:
power inlet / main switch, data interface RS 232, external Emergency-Stop, interface fume extractor
