EOS series - one concept, two sizes

EOS series: solid industrial printers with the highest ease of operation

The new EOS series combines all functions of a solid industrial printer with highest ease of operation. EOS1 is the compact for small work space. For label rolls up to 155 mm diameter. EOS4 for label rolls up to 210 mm diameter. All technical data identical with EOS1.

Two additional USB interfaces are located below the LCD display to connect a standard PC keyboard, a scanner or an USB memory stick. The big, clearly laid out touchscreen LCD display is easy to operate.

In stand-alone mode the label data is entered via keyboard directly into the printer. A PC is not necessary any more.

With the high-tech electronics, the intelligent printhead and efficient power supply the EOS is particularly energy efficient and environmentally friendly. The housing of the EOS devices are made of high-class ABS synthetic with translucent cover and are perfectly harmonized in their form and function. The cab label software cablabel R2+ supports all printer functions optimally.

Product type overview EOS series

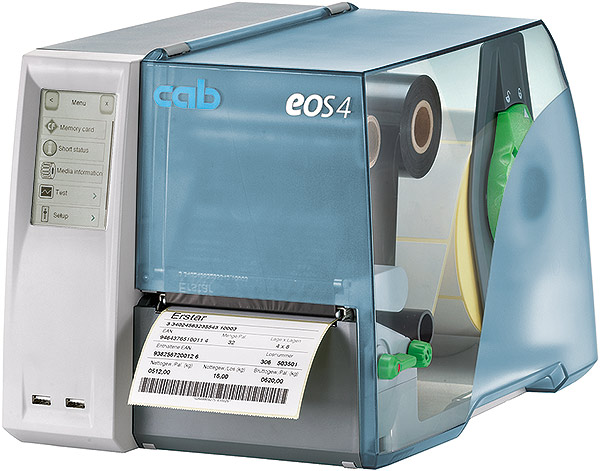

EOS4 for label rolls up to 210 mm Ø.

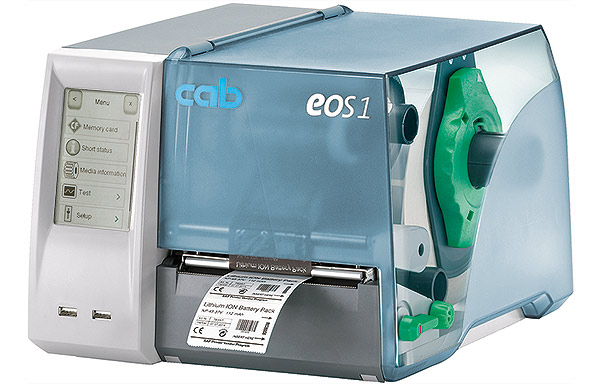

EOS1 for label rolls up to 155 mm Ø.

Type B with tear-off plate

30 mm of material is needed for tear-off.

Label printer EOS B
Printing method Thermal transfer
Thermal direct
Print resolution dpi 203 300
Print width up to  mm  108 105,7
Print speed up to mm/s 125

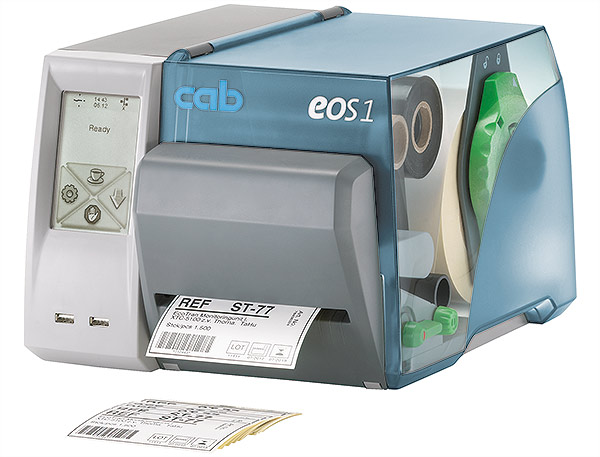

Type C with cutter

Labels or continuous material (with outside winding) can be cut at a height of 10 mm.

Label printer EOS C
Printing method Thermal transfer
Thermal direct
Print resolution dpi 203 300
Print width up to  mm 108 105,7
Print speed up to mm/s 125


Type P with dispensing function (in preparation)

(only EOS4). The label height at dispensing is  20 - 200 mm.

Label printer EOS P
Printing method Thermal transfer
Thermal direct
Print resolution dpi 203 300
Print width up to  mm 108 105,7
Print speed up to mm/s 125



  (only EOS4)



Video EOS-Series

cab EOS1 - der Etikettendrucker mit Touchscreen Play

EOS1 - the label printer with touchscreen


There is no better way to network marking!
There is no better way to network marking!

Label printers, print & apply systems and marking lasers within a network.

Always the right connection

service manual EOS
New service manual EOS series

Learn more on replacing assembly units and adjustments for EOS series.

Download service manual EOS (PDF; 3,2 MB)

Request a quote

Read the product brochure (PDF)

Etikettendrucker EOS Details

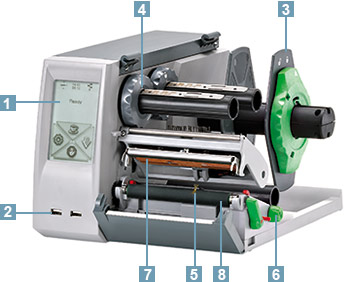

1. Touchscreen – LCD display

Clearly designed for highest ease of use.

2. Two additional USB interfaces

For the connection of a keyboard or a memory stick, in stand-alone mode or to test the service key.

3. Roll holder

The label roll is inserted and centered automatically when closing the cover.

4. Ribbon retainer

The stop is adjustable to the foil width.

5. Gap or reflective sensor

The sensor position is adjustable by the red knob via a spindle. The set position is displayed with a LED. Color and luminance sensor on request.

6. Label guide

The guides are adjusted to the material width with the green knob.

Printhead7. Printhead 203 or 300 dpi

The printhead can be easily removed manually for cleaning or replacement.

8. Drive roller

Drive roller
It can be removed for cleaning or replacement with a click without a tool. When printing very narrow labels, we recommend using narrow drive rollers with a width of 25 or 50 mm to avoid the possibility of the printhead rubbing on the drive roller. This ensures a better print image and lengthens the life of the printhead.




There is no better way to network marking!
There is no better way to network marking!

Label printers, print & apply systems and marking lasers within a network.

Always the right connection

cab and SAP
Integrate cab printers into SAP R/3

Controlling cab label printers quickly and easily from SAP R/3 using SAPScript.

We show you the benefits

Request a quote

Read the product brochure (PDF)

standard Standard     Option

  Label printer EOS1 / EOS4
Printhead
Printing method Thermal transfer/Thermal direkt
Print resolution dpi 203 / 300
Print width up to mm 108 / 105,7
Print speed mm/s 30, 40, 50, 75, 100, 125
Material1) on rolls and fanfolded
  Thickness mm Width mm Height mm
Labels: Paper, cardboard, textiles, plastics such as PET, PE, PP, PVC, PU, acrylate, PI 0,055 - 0,7 single lan10 - 116
  multi lan 5 - 116		 6 - 1000
Labels: carrierpaper 60 - 110 g/m2 0,055 - 0,10 25 - 120 continuous
Continuous material: cardboard 80 - 180 g/m2 0,10 - 0,20 6 - 120 10 - 1000
Continuous material:  plastic film PVC 0,30 6 - 60 10 - 1000
Continuous material:  flat pressed tubes 0,40 - 0,70 5 - 85 10 - 1000
Media roll core Ø mm EOS1 EOS4
Total Ø mm 38 /40 155 210
Total Ø mm 76 152,4 203,2
Winding direction outside or inside
only outside during cutting
Ribbon
Ink outside or inside
Roll diameter up to mm 72
Core diameter mm 25,4
Ribbon length variabel up to m 360
Width mm 50 - 114
Printer dimensions EOS1 EOS4
Height x Depth x Width mm 189 x 322 x 253 245 x 412 x 264
Weight kg 4 5

Label sensor
Gap sensor for leading edge of the label or punching marks and end of material
Reflective sensor from the bottom for printing marks
Distance from the center to the left mm  0 - 58

Electronics
Prozessor high speed 32 Bit clock rate MHz  400
RAM MB  64
Memory IFFS MB Flash  16
Real-time clock, printout of time and date, data storage on shut-down
Acoustic signal in case of error

Interfaces
RS232C 1.200 up to 230.400 Baud/8Bit

EOS interfaces
USB 2.0 full speed slave for PC connection standard
Ethernet 10 / 100 Base T, LPD, RawIP-Printing, ftp-Printing, DHCP, HTTP, FTP, SMTP, SNMP, TIME, Zeroconf, mDNS, SOAP standard
WLAN USB Stick 54 Mbps
Nano Bluetooth USB Adapter V2.1
USB Master for keyboard, scanner, memory stick other service key
1 x on the back side connection up to 500 mA
2 x below the operation panel connection up to 100 mA		 standard
Operation panel
Touchscreen display 160 x 255 pixels with backlight
Diagonal measurement mm 96
Operating functions: Pause, Feed, Cancel, Menu, Enter,  numeric pad

Cutter
Cutting length from mm 10
Cuts/min. up to 200
Monitoring  cutter pivoted, final position not reached

Label dispensing function only EOS4
Printing and despensing with push button on request
automatically after removal of the label
Monitoring  gap sensor, label in despensing position

Operating data
Power supply 100 – 240 V ~ 50 / 60 Hz, PFC
Energy consumption  power saving mode 1,8 W / typic 45 W / max. 100 W
Temperature / Humidity Operation: + 5 – 40°C / 10 – 85% not condensing
Temperature / Humidity Storage:   + 0 – 60°C / 20 – 80% not condensing
Temperature / Humidity Transport:   – 25 – 60°C / 20 – 80% not condensing
Approvals  CE, FCC class A, CB, CCC, UL



  1. All material details are approximate values. Small labels, very thin, narrow, thick or stiff materials as well as labels with strong adhesives must be tested.
There is no better way to network marking!
There is no better way to network marking!

Label printers, print & apply systems and marking lasers within a network.

Always the right connection

cab and SAP
Integrate cab printers into SAP R/3

Controlling cab label printers quickly and easily from SAP R/3 using SAPScript.

We show you the benefits

Request a quote

Read the product brochure (PDF)

1. External roll retainer EOS / 400

External roll retainer EOS / 400The external roll retainer enables the EOS printers to handle label rolls up to a diameter of 400 mm.
Core diameter up to  38 mm, Winding direction outside or inside, Roll weight max. 4 kg









2. USB Memory stick

USB Memory Stick

On the USB stick  label data can be stored or loaded in stand-alone operation.




3. Standard keyboard

Standard keyboardConnection: USB, number of keys: 115



4. RS232C interface

RS232C interfaceLength 1,5 m



5. WLAN USB Stick 54 Mbps

WLAN USB Stick 54 Mbps





6. Nano Bluetooth USB Adapter V2.1

Nano Bluetooth USB Adapter V2.1








Device functionality and compliance with CE standards are only warranted by using the accessories provided or recommended by cab.
