e4 - for simple applications
For use in production, warehousing, offices or shipping departments.
It prints standard packaging labels with barcodes just as professionally as product labels with advertising or clear graphics. The label printer is ideal for short and medium runs.
Labels and ribbons perfectly matched
A small printer with a big advantage: The e4 printer processes label rolls up to 152 mm in diameter and standard ribbons up to 360 m long.
Label roll monitoring made easy
Thanks to the translucent cover, the material stock is always visible.
Fully equipped
The e4 is available in 200 or 300 dpi version. It reaches print speeds of up to 75 mm/s or 100 mm/s. The printer is equipped with16 MB SDRAM and supplied with parallel, serial, USB, and Ethernet interfaces.

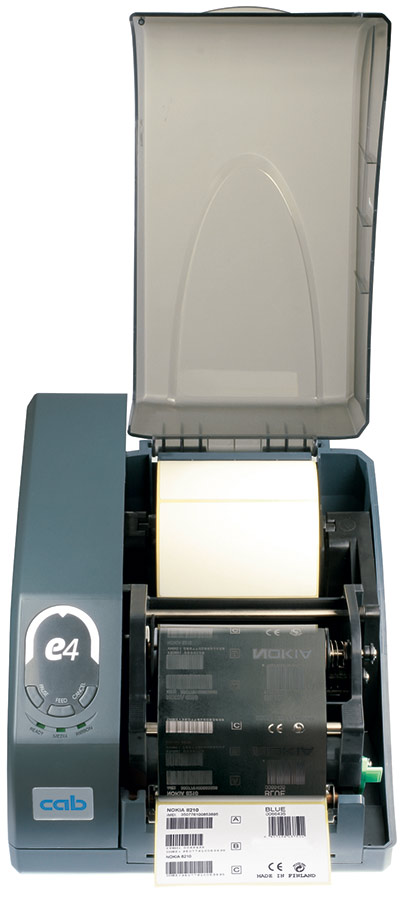

Labels and ribbons centered
The labels are inserted into the center of the printer from above. Two guide holders ensure that the label material runs straight. The ribbon is centered on an adapter. A scale is used to make adjustments.
Easy operation
The printer has Start/Stop, Pause and Cancel buttons. Three LCDs display the current printer status.
Scope of delivery
Label printer, external power supply, label roll with 250 labels
100 mm wide, 42 mm high, black W41 ribbon roll,
110 mm wide, 50 m long, user manual, full version of e-Label
software, Windows driver.
Label software
e-Label free full version
The e4 comes with the free PC label design software “e-Label”. This full version enables the professional design of labels, incl. serial numbers, barcodes, time and date specification, fixed and variable fields, database connection and much more.
Standard
Option
| Label printer | e4 | |
|---|---|---|
| Printhead | ||
| Printing method | Thermal / Thermal transfer | |
| Print resolution dpi | 200 | 300 |
| Print speed up to mm/s | 100 | 75 |
| Print width up to mm | 108 | 106 |
| Material | ||
| Labels, continuous rolls or fan-folded: Standard thermal paper, cardboard, plastics PET, PE, PP, PVC, PU, Acrylat, PI | ||
| Material thickness | 0.08 – 0.20 | |
| Label width1) mm | 25 – 106 | |
| Width of liner or continuous material mm | 25 – 110 | |
| Label height1) from mm | 10 | |
| Label height1) up to mm | 8000 | 4000 |
| Media roll: Total diameter up to mm | 152 | |
| Media roll: Core diameter mm | 25 / 75 | |
| Media roll: Winding direction | outside | |
| Ribbon | ||
| Ink | inside | |
| Roll diameter up to mm | 76 | |
| Core diameter mm | 25 | |
| Running length variable up to m | 360 | |
| Width up to mm | 110 | |
| Dimensions | ||
| Height x depth x width mm | 200 x 329 x 256 | |
| Weight kg | 3.5 | |
| Label sensor | ||
| Reflective sensor from the bottom – for label edge, punching or print marks from the center 15 mm to the left or 30 mm to the right | ||
| Electronics | ||
| Processor clock rate MHz | 50 | |
| RAM MB | 16 | |
| ROM MB Flash | 2 | |
| Operation panel | ||
| Buttons | Pause, Feed, Cancel | |
| LED display | 3 | |
| Interfaces | ||
| Parallel Centronics / USB |
|
|
| Serial RS 232 C / Ethernet 10/100 Base |
|
|
| Operating data | ||
| Voltage, external power supply | 100 – 240 V~ 47 / 63 Hz | |
| Operating temperature | 10 – 40°C | |
| Humidity, not condensing | 30 – 85% | |
| Approvals | CE, CCC | |
